Features

• 5½ digit resolution
• Three measurement speeds – 2.5 readings/s, 20 readings/s, 123 readings/s
• Dual-display function – Displays 2 measurements at once
• DCV, DCI, ACV, ACI
• Resistance (2 or 4 wire), capacitance, frequency, continuity and diode test
• Probe measurement function – Built-in thermocouple compensation
• Various mathematical operations – Max, min, average, P/F, dBm, dB, relative measurement, standard deviation & histogram
• Internal memory stores up to 10 configurations
• Supports saving configuration and data via USB storage device
• Supports USB and RS-232
• DM3058 also supports LAN and GPIB (not DM3058E)
• Built-in help system
• Optional UltraView PC software: Remote control via a virtual front panel and various data monitoring, logging and analysis functions
• Other options include: Rack-mount kit, Kelvin test clips, RCL standard calibration, RCL 17025 calibration

Comparison table

Included

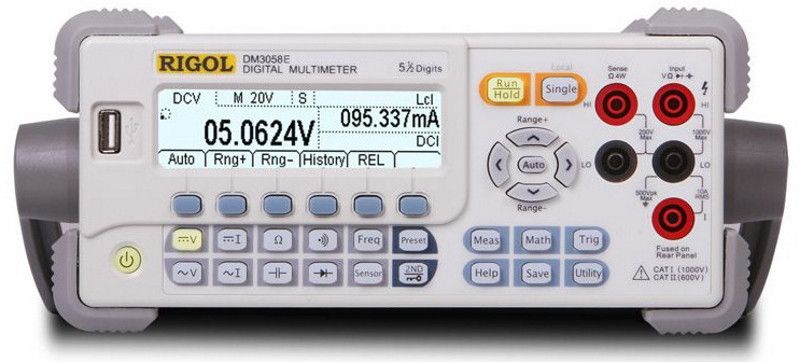

• DM3058E digital bench multimeter
• Two test leads
• Two alligator clips
• Four spare fuses
• USB cable
• Power cords
• Quick guide

Manuals

• DM3058 Quick Start Guide
• DM3058/E Programming Manual
• RM-DM3000 Rack-mount kit user guide
