Features

• 5½ digit resolution
• Three measurement speeds – 2.5 readings/s, 20 readings/s, 123 readings/s
• Dual display function – Shows 2 measurements at once
• DCV, DCI, ACV, ACI
• Resistance (2 or 4 wire), capacitance, frequency, continuity and diode test
• Sensor measurement function – Built-in thermocouple compensation
• Various mathematical operations – Max, min, average, P/F, dBm, dB, relative measurement, standard deviation & histogram
• Internal memory stores up to 10 configurations
• Supports saving configurations and data via USB flash drive

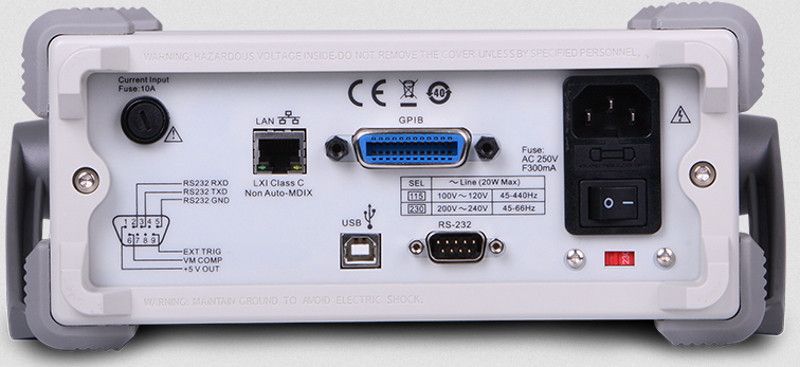

• Supports USB and RS-232
• DM3058 also supports LAN and GPIB (not DM3058E)
• Built-in help system
• Optional UltraView PC software: Remote control via virtual front panel and various data monitoring, logging and analysis functions
• Other options include: Rack mount kit, Kelvin test clips, RCL standard calibration, RCL 17025 calibration

Comparison table

Package contents

• DM3058 digital bench multimeter
• Two test leads
• Two alligator clips
• Four spare fuses
• USB cable
• Power cord
• Quick start guide

Manuals

• DM3058 Quick Start
• DM3058/E Programming Guide
• RM-DM3000 Rack Mount Kit Manual

Links

Video
