Programmable electronic loads of the DL3000 series enable fast execution of many demanding electronic measurements, such as testing DC power supplies, battery chargers, DC-DC converters and batteries.

Features

• Single input, max 150V DC / 60A, total power 350W
• Minimum voltage: 1.3V
• Maximum power: 350W
• 4.3-inch display
• Overcurrent protection, overvoltage protection, overpower protection, overtemperature protection, feedback loop protection
• Multiple load modes: Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), Constant Power (CP), dual load (transient), optional sequences (configurable parameters, max 512 steps)
• Interfaces: RS232, USB, LAN (option), Digital IO trigger (option), USB-GPIB (option)
• Load switching frequency up to 30kHz (Resolution 0.8%)
• Current slew rate max 5A/μs (>5V) (Resolution 0.001 A/μs)
• Minimum read resolution: 0.1mV, 0.1mA

Includes

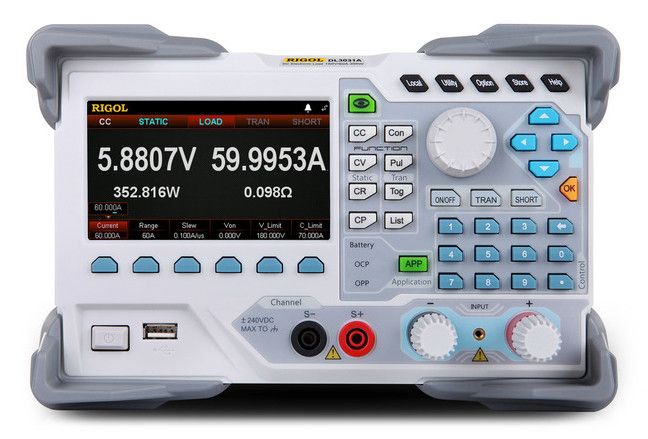

• DL3031A programmable electronic DC load
• Power cord
• USB cable
• Quick guide in English
• Spares fuses
• Magnetic protective cover for terminal connector

Manuals

• DL3000 Datasheets (English)
• DL3000 Quick Guide (English)
• DL3000 User Manual (English)
• DL3000 Programming Manual (English)
• DL3000 Performance Verification Manual (English)

Links

• Rigol DL3000 series (manufacturer product pages)
• DL3000 series downloadable software (Software & Firmware)
