The DL3000 series programmable electronic loads enable fast execution of many demanding electronic measurements, such as measurement of DC power supplies, battery chargers, DC-DC converters and batteries.

Features

• Single input, max 150V DC / 40A, total power 200W
• Minimum voltage: 1V
• Maximum power: 200W
• 4.3 inch display
• Current protection, voltage protection, power protection, temperature protection, feedback protection
• Multiple loading modes: Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), Constant Power (CP), dual load (transient), optional loads (selectable parameters, max 512 steps)
• Interfaces: RS232, USB, LAN (option), Digital IO trigger (option), USB-GPIB (option)
• Load modulation frequency up to 15kHz (Resolution 0.8%) Optionally 30kHz
• Current rise rate max 2,5A/μs (>5V) (Resolution 0.001 A/μs) Optionally 3A/μs
• Minimum measurement resolution: 1mV, 1mA (Optional 0.1mV and 0.1mA)

Note! The difference compared to the A model is mainly performance and interfaces.

Delivery includes

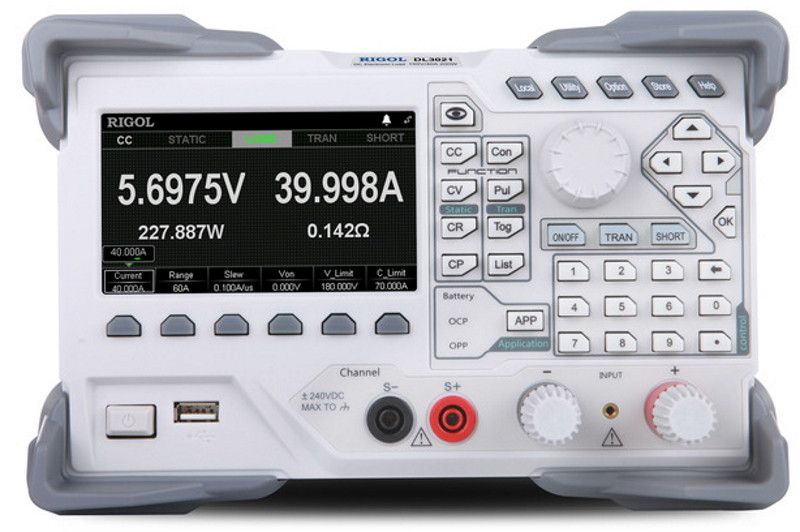

• DL3021 electronic programmable DC load
• Power cord
• USB cable
• Quick guide in English
• Spares fuses
• Magnetic protective cover for the connection terminal

Manuals

• DL3000 Datasheets (in English)
• DL3000 Quick Guide (in English)
• DL3000 User Manual (in English)
• DL3000 Programming Manual (in English)
• DL3000 Performance Verification Manual (in English)
