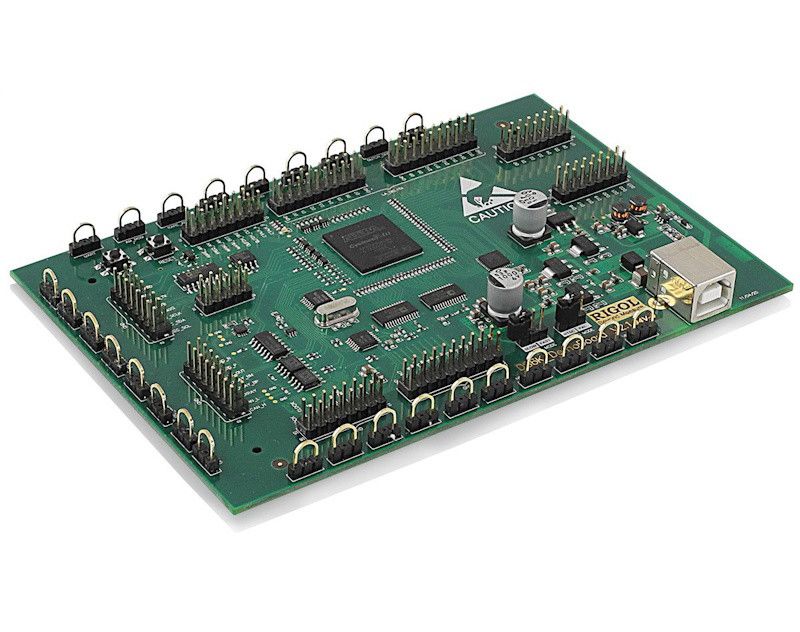

Demo board designed for Rigolin oscilloscopes that generates a wide range of analog and digital signals for measurement with an oscilloscope. An excellent tool for teaching oscilloscope usage.

Features

• Square wave
• Sine wave
• Digital DA signal (filtered/unfiltered)
• Differential signal
• PAL video signal
• NTSC video signal
• Amplitude-modulated signal (AM)
• Sine wave superimposed with noise
• Slow sweep signal
• Fast sweep signal
• Phase deviation signal
• Rare anomalous signal
• Common anomalous signal
• Manual anomalous signal
• Manual discharge
• Narrow pulse
• Sine wave superimposed with interference
• Square wave superimposed with interference
• Crosstalk
• RS232/UART signal
• SPI signal
• I2C signal
• CAN signal
• Signals for logic analyzer testing
