Features

• Based on RIGOL’s new, self-developed Centaurus technology platform
• 12-bit resolution in all series (16-bit in high-resolution mode)
• Max. 1 GHz bandwidth, 8 analog channels and 1 external trigger channel
• MHO models include 16 digital channels as standard configuration (requires purchase of a logic analyzer probe)
• Real-time sampling rate: up to 4 GSa/s
• Maximum memory depth 500 Mpts
• Vertical sensitivity up to 100 μV/div
• Maximum waveform capture rate 1 000 000 wfms/s in fast acquisition mode
• Arbitrary Waveform/Function Generator (AFG) (only MHO5054 and MHO5104), power analysis, histogram and digital signal analysis (only in MHO series), Bode plot (only MHO5054 and MHO5104) and protocol decode
• Search and navigation function helps users quickly find signals with anomalies and locate them precisely
• 256-level intensity grading display with digital real-time persistence
• 10.1-inch 1280×800 HD touch screen
• Standard configuration of USB Device, USB Host, LAN and HDMI interfaces in all series
• Battery powered, convenient to charge anytime and anywhere, offering excellent portability for measurement
• Online update capability
• Standard configuration optical encoder knob in all series to improve device lifetime

Rigol DHO5000 Series Oscilloscopes Comparison Table

Delivery includes

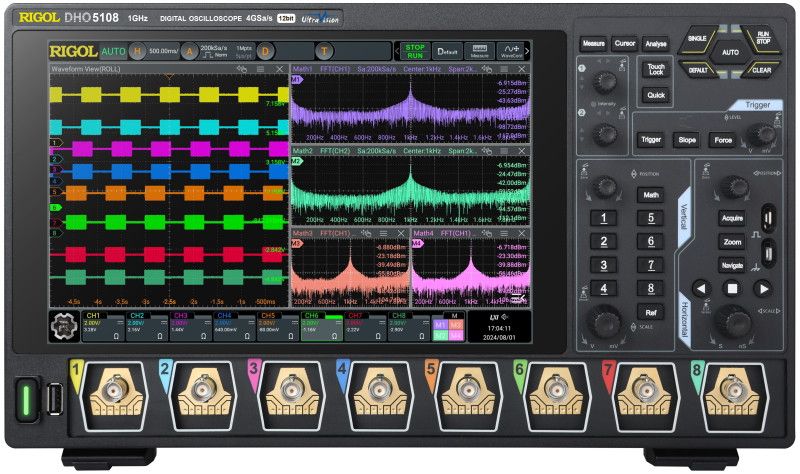

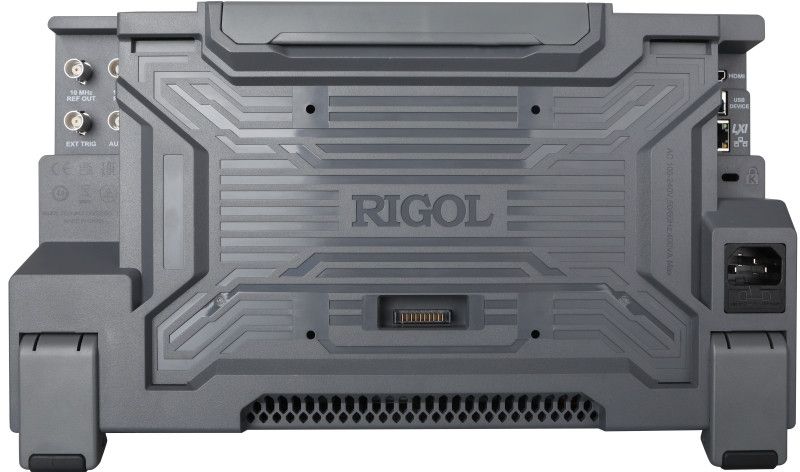

• DHO5108 oscilloscope
• Eight high-impedance RP3500A probes
• Power cord
• USB cable
