Features

• Based on RIGOL's new, self-developed Centaurus technology platform
• 12-bit resolution in all series (16-bit in high-resolution mode)
• Max. 1 GHz bandwidth, 8 analog channels and 1 external trigger channel
• MHO models include 16 digital channels as standard configuration (requires purchase of logic analyzer probe)
• Real-time sampling rate: up to 4 GSa/s
• Max. memory depth 500 Mpts
• Vertical sensitivity up to 100 μV/div
• Maximum waveform capture rate 1 000 000 wfms/s in fast acquisition mode
• Arbitrary Waveform/Function Generator (AFG) (only MHO5054 and MHO5104), power analysis, histogram and digital signal analysis (MHO series only), Bode plot (only MHO5054 and MHO5104) and protocol decoding
• Search and navigation function helps users quickly find signals with anomalies and locate them precisely
• 256-level intensity grading display with digital real-time persistence
• 10.1-inch 1280*800 HD touchscreen
• Standard configuration of USB Device, USB Host, LAN and HDMI interfaces in all series
• Battery-powered, convenient to charge anytime and anywhere, offering excellent portability for measurement
• Online update capability
• Optical encoder rotary knob as standard in all series to improve device lifespan

Rigol DHO5000 Series Oscilloscopes Comparison Table

Package includes

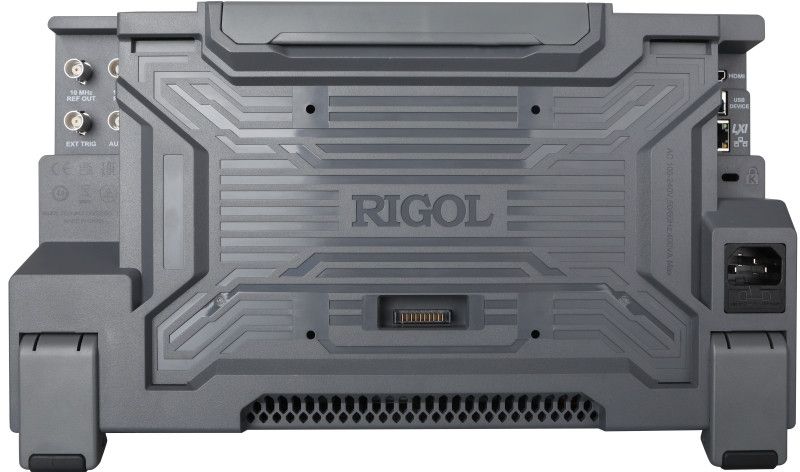

• DHO5104 oscilloscope
• Four high-impedance RP3500A probes
• Power cord
• USB cable
