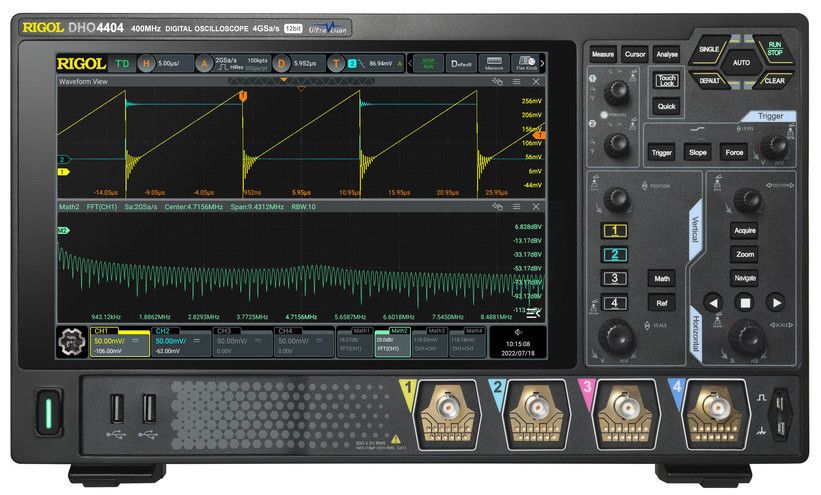

The Rigol DHO4000 series is based on Rigol 27s self-developed second-generation Centaurus chipset, designed to provide an extremely low 18uVrms noise floor. The high 12-bit resolution means the captured signal is 16 times more precise than previous 8-bit models.
The UltraAcquire mode allows up to 1,500,000 waveform captures per second. You can be confident you will spot all anomalous signals.
The DHO4000 series includes, as standard, parallel, RS232/UART, I2C, SPI and CAN protocol decoding and triggering.
Additionally, LIN, CAN-FD, FlexRay, I2S and MIL-STD-1553 decoding are available as options.
Features
Bandwidth: 400 MHz; upgradable to 800 MHz
4 analog channels
Up to 4 GSa/s real-time sampling rate
100uV/div measurement range
250 Mpts (Upgradable to 500 Mpts)
High waveform storage rate (up to 1,500,000 wfm/s in UltraAcquire mode)
Up to 500,000 frames of hardware real-time, non-stop waveform capture and playback
Independent search, navigation keys and event database
10.1-inch capacitive multi-touch display, 256-level intensity grading, with color persistence
Multiple interfaces available: USB HOST and DEVICE, LAN (LXI), HDMI, TRIG OUT and USB-GPIB
Web Control remote command
Comprehensive options in functionality and performance. See the manufacturer 27s pages for a detailed list.
