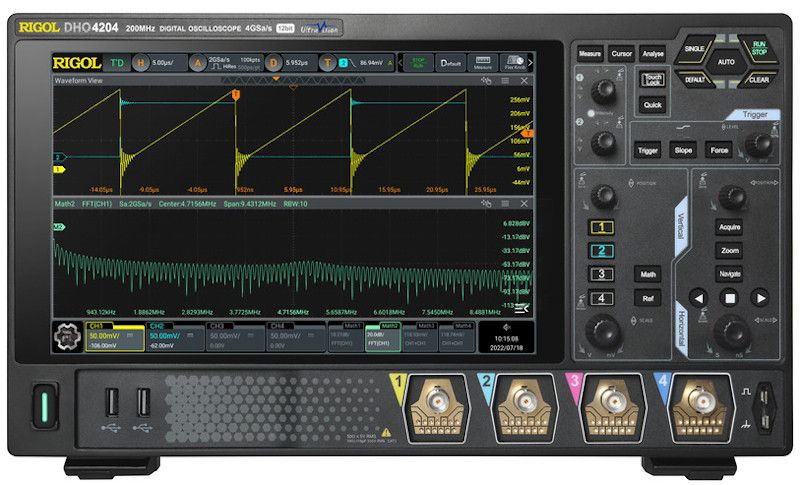

Rigol DHO4000 series is based on Rigol's self-developed second-generation Centaurus chipset, which is designed to provide an extremely low 18uVrms noise level. The high 12-bit resolution means the captured signal is 16 times more precise than in previous 8-bit models.

The UltraAcquire mode allows up to 1,500,000 waveform captures per second. So you can be sure you will notice all abnormal signals.

The DHO4000 series includes built-in parallel, RS232/UART, I2C, SPI and CAN protocol decoding and triggering.

Additionally, LIN, CAN-FD, FlexRay, I2S and MIL-STD-1553 decoding are available as options.

Features

• Bandwidth: 200 MHz; upgradable to 800 MHz
• 4 analog channels
• Up to 4 GSa/s real-time sampling rate
• 100uV/div measurement range
• 250 Mpts (Upgradable to 500 Mpts)
• High waveform capture rate (up to 1,500,000 wfm/s in UltraAcquire mode)
• Up to 500,000 frames of hardware real-time and non-stop waveform capture and playback
• Independent search, navigation keys and event database
• 10.1 inch capacitive multi-touch display, 256-level intensity grading, with color durability
• Multiple interfaces available: USB HOST and DEVICE, LAN (LXI), HDMI, TRIG OUT and USB-GPIB
• Web Control remote command

Comprehensive options in functionality and performance. A detailed list can be found on the manufacturer's pages.

Rigol DHO4000 Series Oscilloscopes Comparison Table

Delivery includes

• DHO4804 oscilloscope
• Four RP3500A probes
• Power cord
• Calibration certificate
• USB cable
• Quick start guide

User guides

• DHO4000 Datasheet (in English)
• DHO4000 Quick Guide (in English)
• DHO4000 User Guide (in English)
• DHO4000 Programming Guide (in English)

Video

EEVblog - Rigol HDO4000 Low Noise 12bit Oscilloscope Unboxing & First Impression:
