The new Rigol DHO1000 series oscilloscopes are based on Rigol’s self-developed Centaurus chipset. The new chipset enables 12-bit vertical resolution and 2 GSa/s sampling rate. In UltraAcquire mode the DHO1000 series oscilloscopes reach a waveform capture rate of up to 1 500 000 wfms/s.

Features

• Bandwidth: 200MHz
• 12-bit A/D conversion
• Real-time sampling rate: max. 2 GSa/s (when using a single channel)
• Waveform capture rate: max. 1 500 000 wfms/s (in UltraAcquire mode)
• 4 analog channels
• Sample memory depth: 50 Mpts (100 Mpts optional)
• Supports RS232/UART, I²C, SPI, CAN and LIN serial bus decoding
• 10.1" HD (1280x800) capacitive multi-touch display
• Supports Web Control interface

Rigol DHO1000 product family comparison table

See the manufacturer’s page for options such as passive, logic, current and high voltage probes: manufacturer’s page. All models are available through us.

Delivery includes

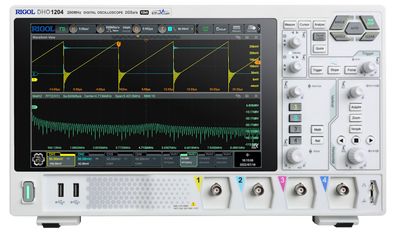

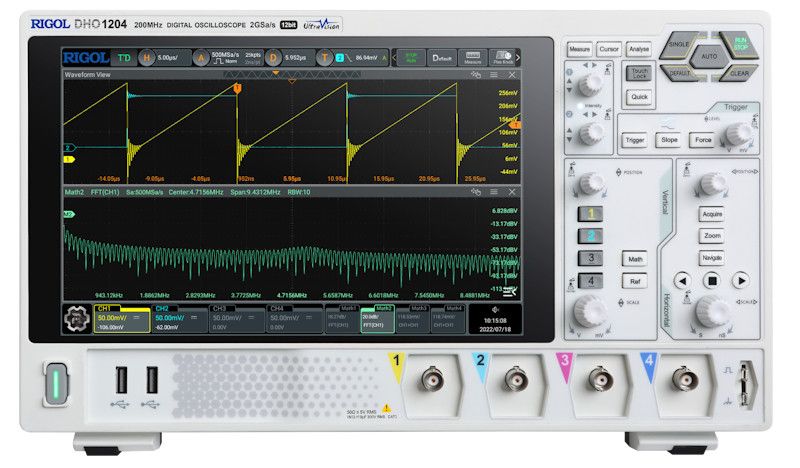

• DHO1204 Oscilloscope
• PVP2350 probes (x4)
• Calibration certificate
• Power cord
• USB cable

Manuals

• DHO1000_DataSheet_EN (datasheet in English)
• DHO1000_QuickGuide_EN (quick guide in English)
• DHO1000_UserGuide_EN (user manual in English)
• DHO1000 Programming Manual (programming guide in English)

Finnish manuals are available on request.
