Rigol DH01000- series new oscilloscopes are based on Rigol’s self-developed Centaurus chipset. The new chipset enables 12-bit vertical resolution and 2GSa/s sampling rate. In UltraAcquire mode, the DHO1000 series oscilloscopes reach up to 1 500 000 wfms/s waveform capture rate.

Features

• Bandwidth: 200MHz
• 12-bit AD conversion
• Real-time sampling rate: max. 2 GSa/s (when using one channel)
• Waveform capture rate: max. 1 500 000 wfms/s (in UltraAcquire mode)
• 2 analog channels
• Sample memory depth: 50 Mpts (100 Mpts optional)
• Supports RS232/UART, I²C, SPI, CAN and LIN serial bus decoding
• 10.1" HD (1280x800) capacitive multi-touch display
• Supports Web Control interface

Rigol DHO1000 product family comparison table

See the manufacturer’s page for options such as passive, logic, current and high voltage probes. All models are available through us.

Delivery includes

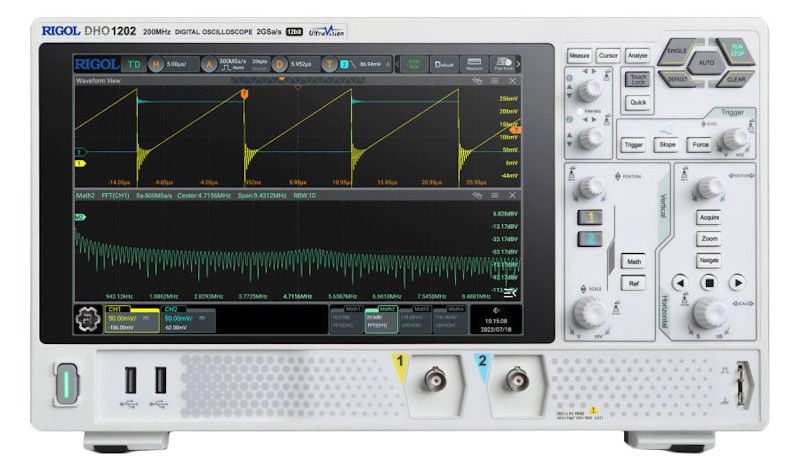

• DHO1202 Oscilloscope
• PVP2350 probes (x2)
• Calibration certificate
• Power cord
• USB cable

Manuals

• DHO1000_DataSheet_EN (datasheet in English)
• DHO1000_QuickGuide_EN (quick guide in English)
• DHO1000_UserGuide_EN (user manual in English)
• DHO1000 Programming Manual (programming guide in English)

Finnish manuals available on request.
