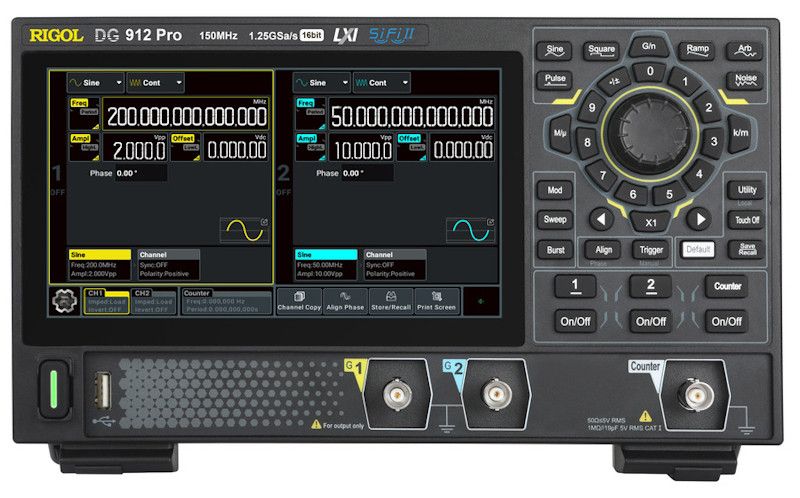

Rigol's DG900 Pro series combines a compact and easy-to-use package with an impressive range of signal generation capabilities. DG900 Pro series generators can produce arbitrary waveforms, harmonic overtones, noise and pulses. With a comprehensive selection of sweep modes and modulations, the DG900 Pro covers even demanding requirements. The 7-inch touchscreen makes operation smooth.

Rigol SIFI II technology adjusts the sampling rate so that any signal can be produced with very high accuracy without distortion. Signal jitter is as low as 200ps (rms).

In addition to mains power, DG900 Pro series generators can be powered from a USB-C equipped portable power bank.

Like the DHO800/900 series oscilloscopes, the DG900 Pro series signal generators can be mounted on any VESA-compatible stand, freeing valuable desk space.

Features

• Output modes: continuous, modulated, sweep, burst, sequence
• Standard waveforms: sine, square, ramp, pulse, noise, harmonic
• Built-in arbitrary waveforms: 148 pcs (e.g. sinc, ECG, Gaussian)
• Frequency resolution: 12uHz or 12 significant digits
• Phase noise: <-110dBc/Hz (typical)
• Rise/fall time: <=3ns (typical)
• 7-bit 1GHz frequency counter

DG900 Pro series feature comparison table

Included in delivery

• DG912 Pro signal generator
• Mains power adapter
• USB cable
• 1 BNC cable

Links

• DG900 Pro Quick Guide (in English)
• DG900 Pro User Guide (in English)
• DG900 Pro Programming Guide (in English)
• DG900 Pro Datasheet (in English)
• DG900 Pro Open Source Acknowledgment (in English)
