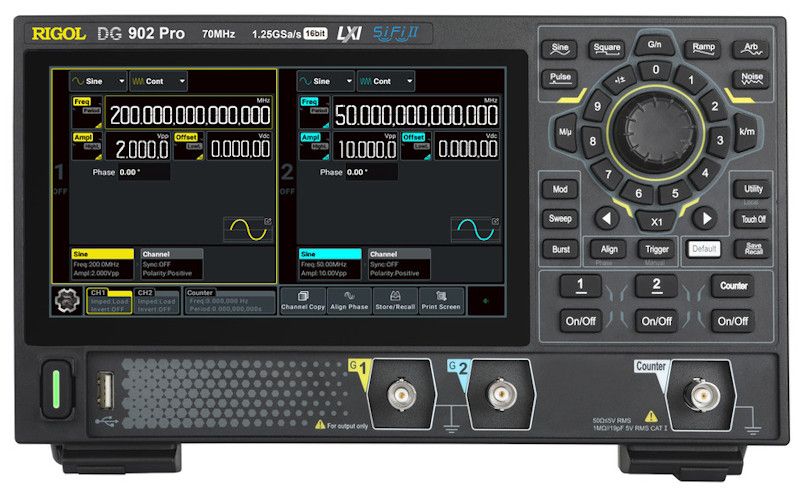

Rigol's DG900 Pro series combines an impressive range of signal generation capabilities in a compact and easy-to-use package. The DG900 Pro series generators can produce arbitrary waveforms, harmonic overtones, noise and pulses. Combined with a comprehensive selection of sweep modes and modulations, the DG900 Pro covers even more demanding needs. The 7-inch touchscreen makes operation smooth.

Rigol's SIFI II technology adjusts the sampling rate so that any signal can be produced extremely accurately without distortion. Signal jitter is as good as 200ps (rms).

DG900 Pro series generators can be powered not only from mains but also from a USB-C equipped portable power bank.

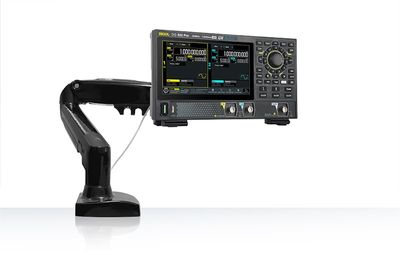

Like the DHO800/900 series oscilloscopes, the DG900 Pro series signal generators can be mounted on any VESA-compatible stand. This frees valuable space on the workbench.

Features

• Output modes: continuous, modulated, sweep, burst, sequence
• Standard waveforms: sine, square, ramp, pulse, noise, harmonic
• Built-in arbitrary waveforms: 148 items (incl. sinc, ECG, gaussian)
• Frequency resolution: 12 uHz or 12 significant digits
• Phase noise: <-110dBc/Hz (typical)
• Rise/fall time: <=3ns (typical)
• 7-bit 1GHz frequency counter

DG900 Pro series feature comparison table

Scope of delivery

• DG902 Pro signal generator
• Mains power adapter
• USB cable
• 1 BNC cable

Links

• DG900 Pro Quick Guide (in English)
• DG900 Pro User Guide (in English)
• DG900 Pro Programming Guide (in English)
• DG900 Pro Datasheet (in English)
• DG900 Pro Open Source Acknowledgment (in English)
