Rigol's DG800 Pro series combines an impressive range of signal generation capabilities into a compact and easy-to-use package. The DG800 Pro series generators can produce arbitrary waveforms, harmonic overtones, noise and pulses. With a comprehensive selection of sweep modes and modulations, the DG800 Pro covers even demanding needs. The 7-inch touchscreen makes operation smooth.

Rigol SIFI II technology adjusts the sampling rate so that any signal can be produced with very high accuracy without distortion. Signal jitter is as low as 200ps (rms).

DG800 Pro series generators can be powered not only from mains but also from a USB-C-equipped portable power bank.

Like the DHO800/900 series oscilloscopes, the DG800 Pro series signal generators can be mounted on any VESA-compatible stand. This frees valuable desk space.

Features

• Output modes: continuous, modulated, sweep, burst, sequence
• Standard waveforms: sine, square, ramp, pulse, noise, harmonic
• Built-in arbitrary waveforms: 148 pcs (e.g. sinc, ECG, gaussian)
• Frequency resolution: 12 uHz or 12 significant digits
• Phase noise: <-110dBc/Hz (typical)
• Rise/fall time: <=3ns (typical)
• 7-bit 500MHz frequency counter

Comparison table of Rigol DG800 Pro series features

Includes

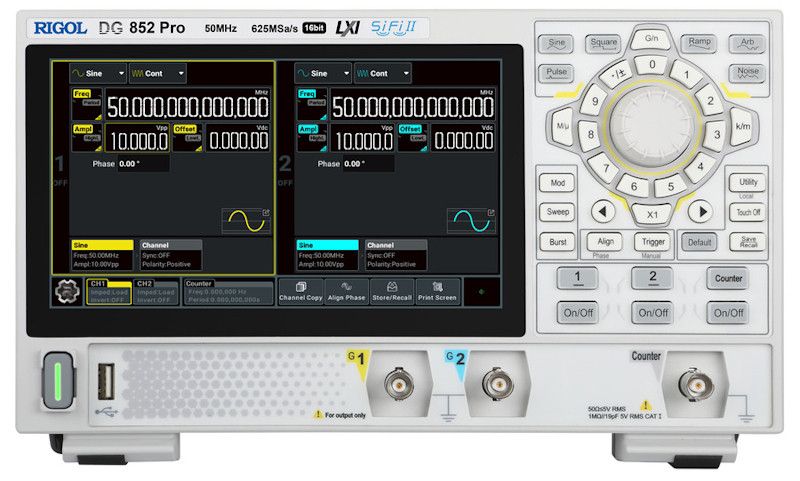

• DG852 Pro signal generator
• Mains power adapter
• USB cable
• 1 BNC cable

Links

• DG800 Pro Quick Guide (English)
• DG800 Pro User Guide (English)
• DG800 Pro Programming Guide (English)
• DG800 Pro Datasheet (English)
• DG800 Pro Open Source Acknowledgment (English)
