Rigol DG800 Pro series combines a compact and easy-to-use package with an impressive range of signal generation capabilities. With the DG800 Pro series generators you can generate arbitrary waveforms, harmonic overtones, noise and pulses. Add a comprehensive selection of sweep modes and modulations and the DG800 Pro covers even demanding needs. The 7-inch touchscreen makes operation smooth.

Rigol SIFI II technology adjusts the sampling rate so that any signal can be produced with very high accuracy without distortion. Signal jitter is as good as 200ps (rms).

DG800 Pro series generators can be powered not only from mains but also from a USB-C equipped portable power bank.

Like the DHO800/900 series oscilloscopes, the DG800 Pro series signal generators can be mounted on any VESA-compatible stand. This frees valuable desk space.

Features

• Output modes: continuous, modulated, sweep, burst, sequence
• Standard waveforms: sine, square, ramp, pulse, noise, harmonic
• Built-in arbitrary waveforms: 148 pcs (incl. sinc, ECG, gauss)
• Frequency resolution: 12uHz or 12 significant digits
• Phase noise: <-110dBc/Hz (typical)
• Rise/fall time: <=3ns (typical)
• 7-bit 500MHz frequency counter

Rigol DG800 Pro - series feature comparison table

Included in delivery

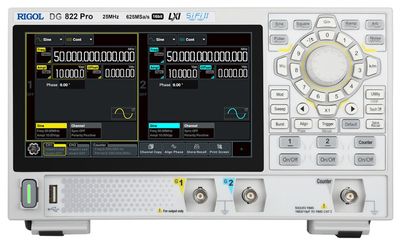

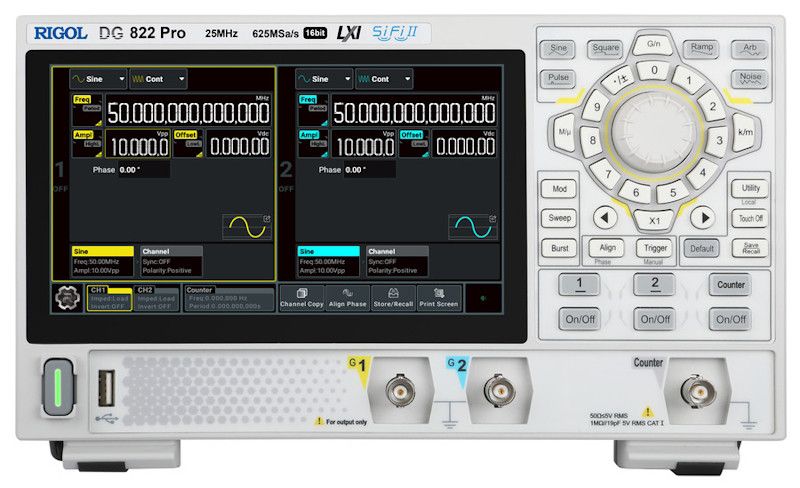

• DG822 Pro signal generator
• Mains power adapter
• USB cable
• 1 BNC cable

Links

• DG800 Pro Quick Guide (English)
• DG800 Pro User Guide (English)
• DG800 Pro Programming Guide (English)
• DG800 Pro Datasheet (English)
• DG800 Pro Open Source Acknowledgment (English)
