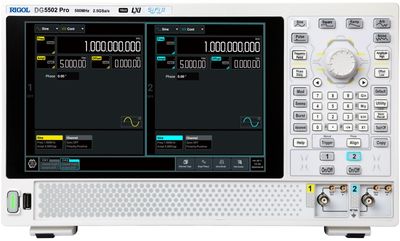

Rigol DG5502 Pro - a new-generation high-performance arbitrary function and waveform generator with 2-channel output, 500 MHz analog bandwidth and 16-bit vertical resolution.

6148,25 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Features

Two independent signal outputs
Protected isolation to prevent ground loops
16-bit vertical resolution
Maximum edge frequency 170MHz, 0.8ns rise time
Maximum pulse frequency 120MHz, 4.2ns minimum width
Multi-pulse output function with adjustable edge shape and pulse width
IQ digital modulation
Multiple external interfaces, such as USB host/device, LAN, HDMI
Built-in harmonic generator (max. 20th order)
Various modulation types, such as AM, FM, PM, ASK, PSK and PWM
Sequence mode supports up to 512 waveforms
Excellent user interface with a large touchscreen (1280x800)
Optional rear-mount battery available for outdoor use
Standard Web Control function facilitates remote operation

Rigol DG5000 Pro - series feature comparison table

Model	Max. output frequency	Sampling rate	Resolution	Channels	Arbitrary waveform length
DG5252 Pro	250MHz	2.5Gsa/s	16 bits	2	64M/CH (128M/CH opt.)
DG5352 Pro	350Mhz	2.5Gsa/s	16 bits	2	64M/CH (128M/CH opt.)
DG5502 Pro	500MHz	2.5Gsa/s	16 bits	2	64M/CH (128M/CH opt.)

Package contents

DG5502 Pro signal generator
Power cord
USB cable
2 BNC cables

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Rigol
Product path Home Measuring Instruments Electronic Measuring Instruments Signal Generators Rigol DG5502 Pro WAVEFORM GENERATOR 500MHz 2CH
SKU RGDG5502PRO
Attributes
- Channels 2
- Bandwidth 500MHz
- Product family Rigol DG5000 Pro
- Manufacturer's model DG5502 Pro
- Factory delivery time 3 weeks
- Instructions for use In English; Finnish available on request (PDF format)
- Extended warranty 3 years
