Features

• Two independent signal outputs
• Protective isolation to prevent ground loops
• 16-bit vertical resolution
• Square wave maximum frequency 170MHz, 0,8ns rise time
• Pulse wave maximum frequency 120MHz, 4,2ns minimum pulse width
• Multi-pulse output function with adjustable edge shape and pulse width
• IQ digital modulation
• Multiple external interfaces such as USB-host/device, LAN, HDMI
• Built-in harmonic overtone generator (max. 20th order)
• Various modulation types, such as AM, FM, PM, ASK, PSK and PWM
• Sequence mode supports up to 512 waveforms
• Excellent user interface with a large touchscreen (1280x800)

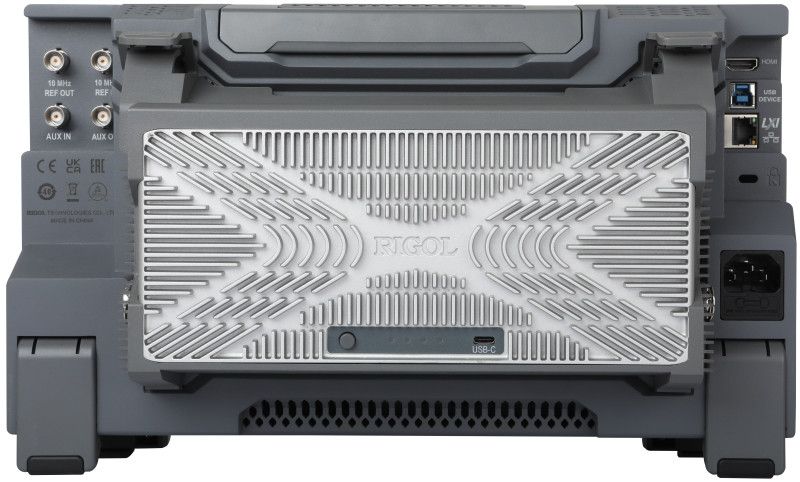

• Optional rear-mount battery available for outdoor use
• Standard Web Control function facilitates remote operation

Rigol DG5000 Pro series features comparison table

Included in delivery

• DG5352 Pro signal generator
• Power cord
• USB cable
• 2 BNC cables
