Features

• Two independent signal outputs
• Protects isolation to prevent ground loops
• 16-bit vertical resolution
• Edge waveform maximum frequency 170MHz, 0.8ns rise time
• Pulse waveform maximum frequency 120MHz, 4.2ns minimum width
• Multipulse output function with adjustable edge shape and pulse width
• IQ digital modulation
• Multiple external interfaces such as USB host/device, LAN, HDMI
• Built-in harmonic overtone generator (max. 20th order)
• Various modulation types such as AM, FM, PM, ASK, PSK and PWM
• Sequence mode supports up to 512 waveforms
• Excellent user interface with large touchscreen (1280x800)

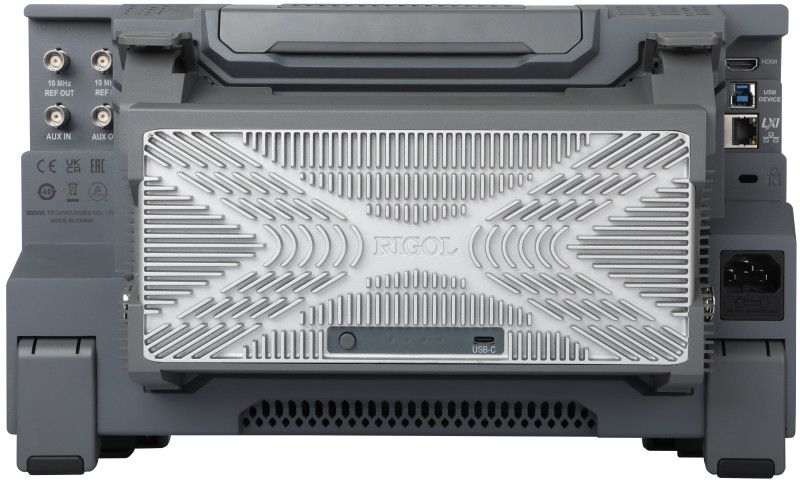

• Optional rear-mountable battery for outdoor use
• Standard Web Control function facilitates remote operation

Rigol DG5000 Pro - series feature comparison table

Included in delivery

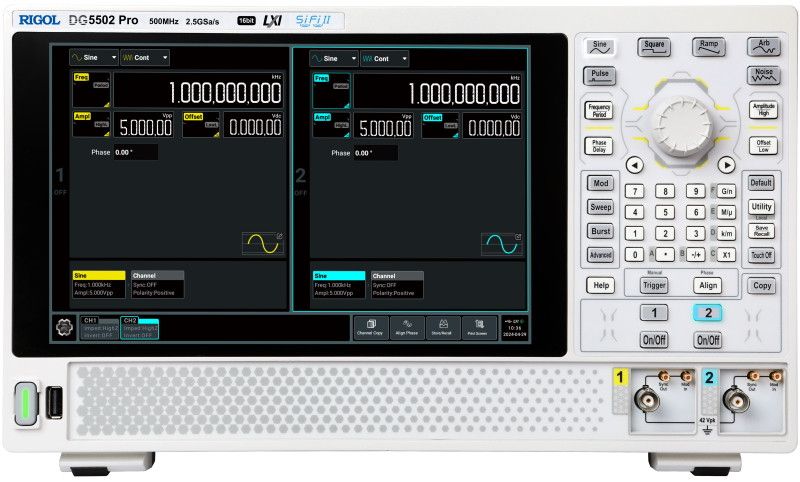

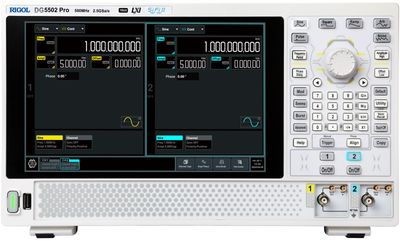

• DG5252 Pro signal generator
• Power cord
• USB cable
• 2 BNC cables
