Rigol DG4062 SIGNAL GENERATOR 60MHz 2CH

Name: Rigol DG4062 SIGNAL GENERATOR 60MHz 2CH
Brand: Rigol
SKU: RGDG4062
Price: 1027.84 EUR
Availability: InStock

Temporarily out of stock

SKU#: RGDG4062

Rigol DG4062 SIGNAL GENERATOR 60MHz 2CH

Temporarily out of stock

SKU#: RGDG4062

Rigol DG4062 - two-channel arbitrary waveform generator (arbitrary waveform generator), which offers extensive features for generating and testing signals in electronics development and testing

1027,84 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Rigol DG4062 is a two-channel arbitrary waveform generator that offers extensive features for generating and testing signals in electronics development and production. It is part of the Rigol DG4000 series and provides excellent performance and versatile features for various applications.

Specifications

60 MHz maximum output frequency (sine), 500 MSa/s sampling rate, 14-bit vertical resolution.
Allows precise phase adjustment of the two channels.
Supports an external power amplifier module (optional) with online configuration functionality.
150 waveforms or functions: Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haversine, Lorentz, Dual Tones, Harmonics, Video Signal, Radar Signal, DC, etc.
Allows 16 kpts arbitrary frequency waveform editing and supports point-by-point arbitrary frequency output.
Pulse rise and fall times can be adjusted separately.
Allows harmonic output with specified order and amplitude, up to the 16th harmonic.
Supports superposition of Gaussian noise onto base waveforms.
Various modulation types: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK and PWM modulations.
Supports frequency sweep and Burst output.
Performs internal/external modulation and internal/external/manual triggering on the two channels separately or simultaneously.
Uses direct digital synthesis (DDS) and produces stable, accurate, clean, and low-distortion signals.

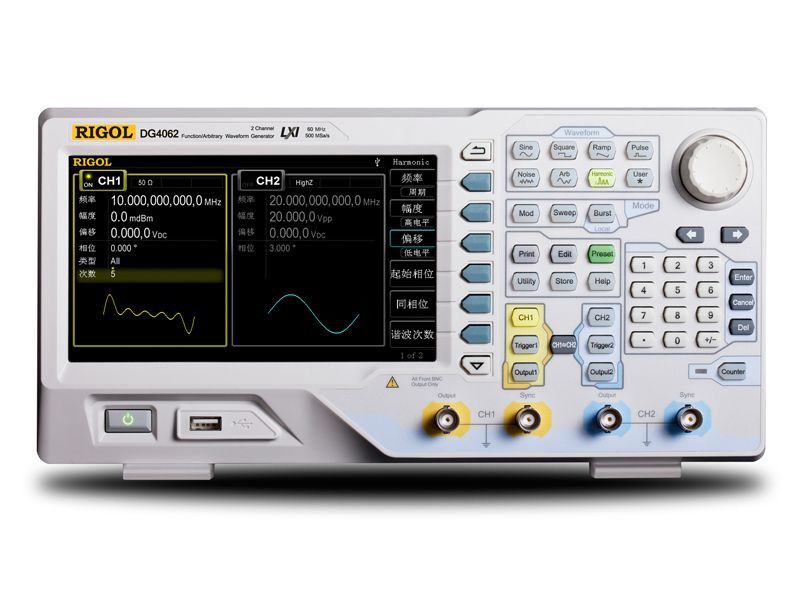

7-inch, 16M color TFT LCD that displays two-channel parameters and graphics simultaneously.
Two-channel sync signal can be generated separately or simultaneously.
Supports frequency hopping, phase hopping and amplitude hopping separately or simultaneously.
Provides a 7-digit/s, 200 MHz counter; enables measurement of various parameters of external signals such as frequency, period, duty cycle, positive pulse width and negative pulse width; provides statistical functions for measurement results.
Supports copying waveforms and states between channels.
Allows saving and restoring arbitrary waveform files and hardware state files; supports multiple file types.
Plenty of standard interfaces: USB Host, USB Device and LAN.

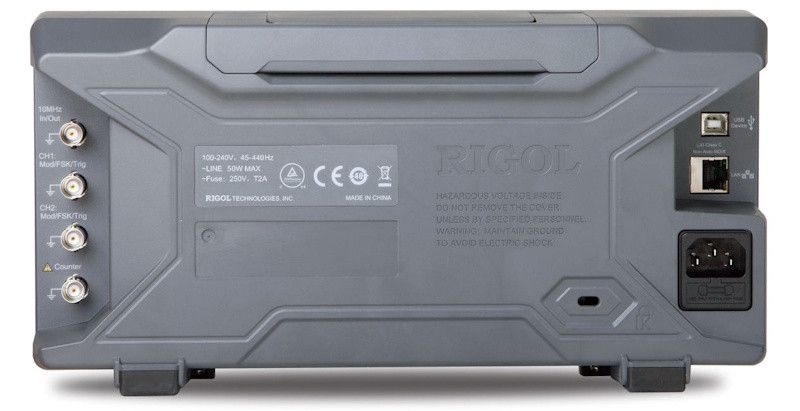

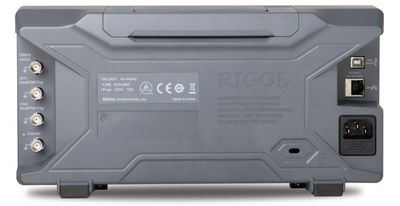

Extensive I/O: waveform output, sync signal output, modulation input, 10 MHz clock input/output and trigger input/output.
Supports FAT32-formatted USB storage devices (flash type).
Supports 10/100M Ethernet network connection; users can remotely control the device over the network.
Complies with LXI Core 2011 device instrument standards.
English user interface.
Powerful waveform editing software (Ultra Station).
Security lock slot.

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Rigol
Product path Home Measuring Instruments Electronic Measuring Instruments Signal Generators Rigol DG4062 SIGNAL GENERATOR 60MHz 2CH
SKU RGDG4062
Attributes
- Channels 2
- Bandwidth 60MHz
- Product family Rigol DG4000
- Manufacturer's model DG4062
- Click for more details https://int.rigol.com/products/DG_detail/DG.html
- Instructions for use In English; Finnish available on request (PDF format)
