RIGOL CK106A VNA calibration kit is designed for calibrating vector network analyzers (VNA). The kit includes LOAD, OPEN, SHORT and THRU calibration standards, and is especially suitable for instruments with 50 Ω Type-N connectors in the frequency range DC – 6.5 GHz.

The CK106A is compatible with, among others, RIGOL RSA3000N and RSA5000N series analyzers.

Features

• Frequency range: DC – 6.5 GHz
• Includes four modules: LOAD, OPEN, SHORT and THRU
• Connector type: Type-N (male)
• Impedance: 50 Ω
• Stable performance over a wide temperature range

Compatible Rigol models

• RSA3015N
• RSA3030N
• RSA3045N
• RSA5032N
• RSA5065N

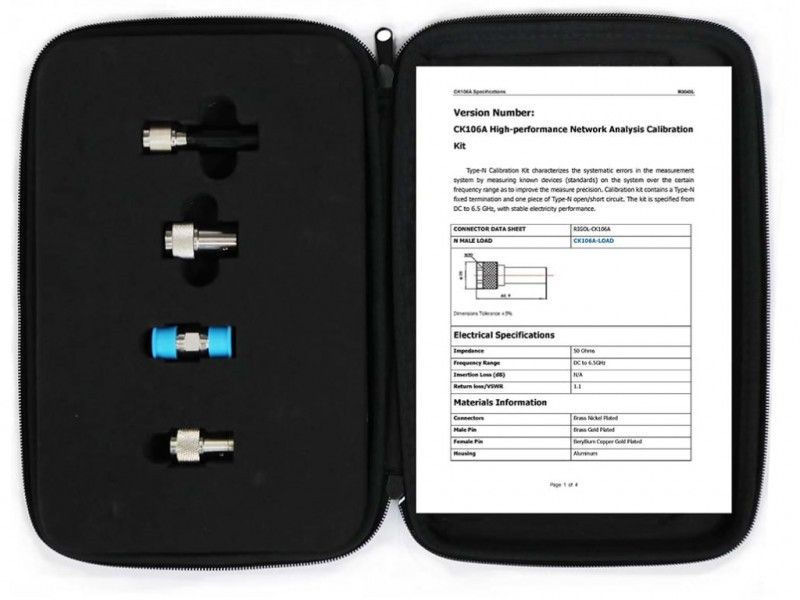

Calibration kit contents

• N-male LOAD (CK106A-LOAD)
• N-male OPEN (CK106A-OPEN)
• N-male SHORT (CK106A-SHORT)
• N-female – N-female THRU (CK106A-THRU)
