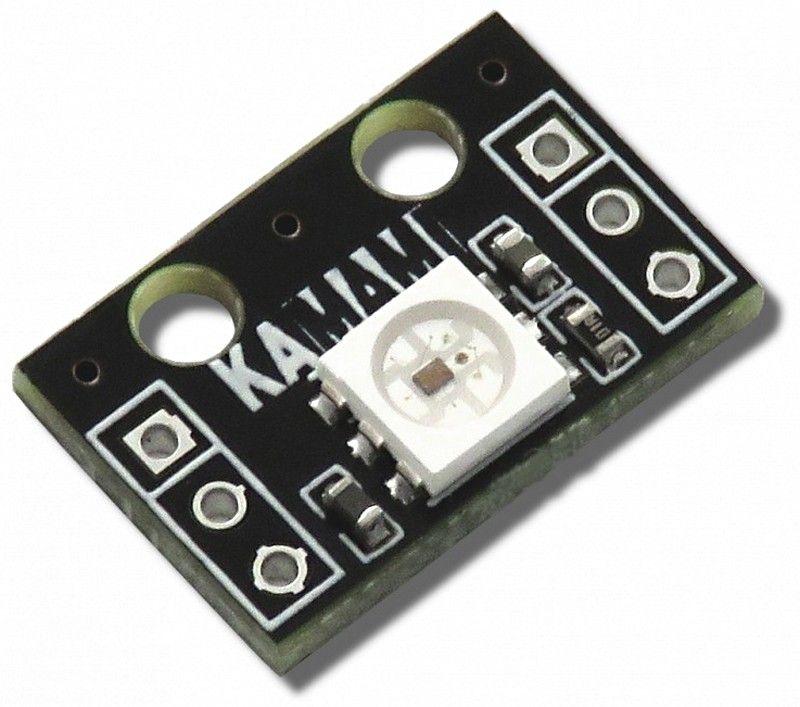

With the KAmodWS2812-1 module you can create lighting effects in any color, and thanks to the driver built into the WS2812 LED, modules can be chained into rows to form any shapes. Regardless of the number of connected LEDs, control is done with a single signal cable.

Features

• Tri-color LED (RGB) WS2812 type with built-in driver
• Ability to chain additional modules without extra signal wires
• Each primary color can be controlled at up to 256 brightness levels
• Capability to display over 16.7 million color shades
• Supply voltage: 5...7V
• The jumper cable connecting two modules can be up to 5 meters long without an additional amplifier
• Holes for soldering connector pins
• Two 3 mm mounting holes
• Module size (without connectors): 18 mm x 11,5 mm x 3,5 mm

Delivery

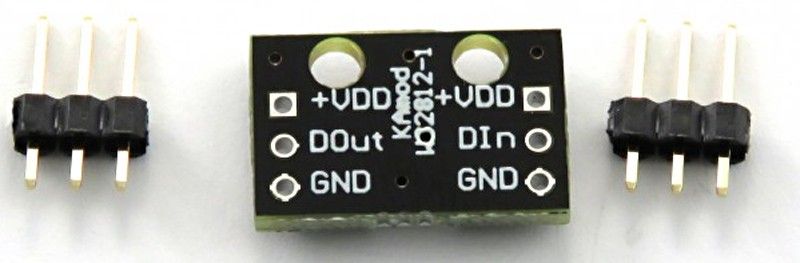

• KAmodWS2812-1 module
• Two 3-pin connectors (male straight) for soldering
