RGB LED MATRIX BOARD 64x WS2812 8x8

In stock under 5 pcs

SKU#: LEDRGB-MOD64

RGB LED MATRIX BOARD 64x WS2812 8x8

RGB LED MATRIX BOARD 64x WS2812 8x8

Noname

RGB LED MATRIX BOARD 64x WS2812 8x8

In stock under 5 pcs

SKU#: LEDRGB-MOD64

17,72 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

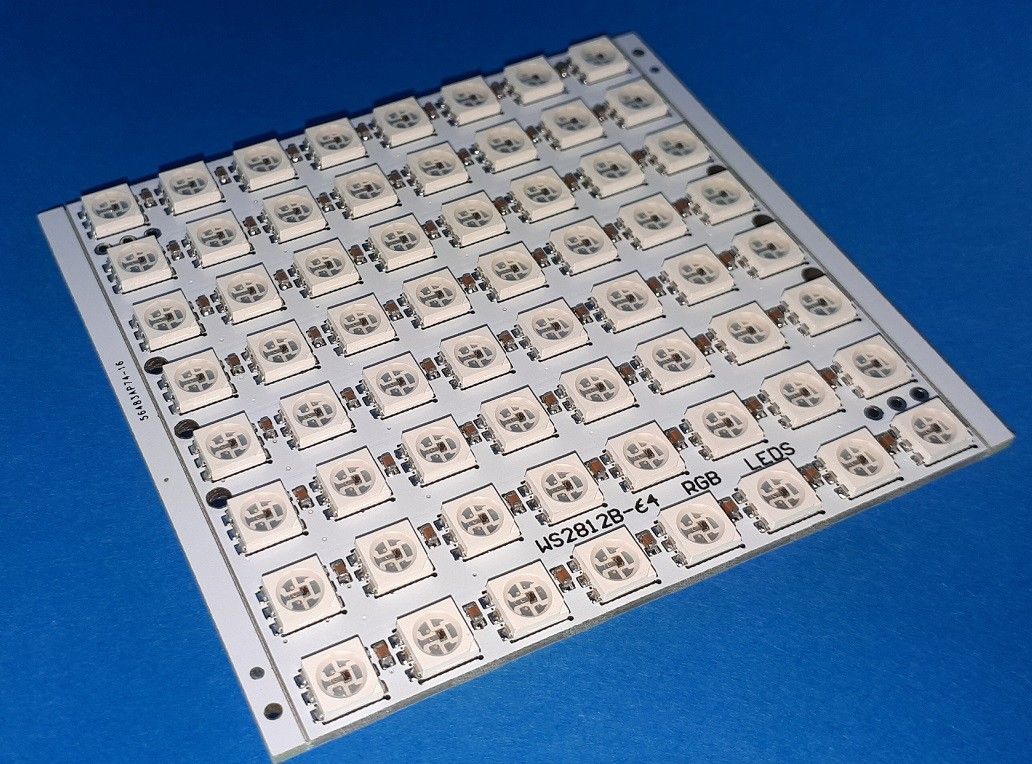

64x SMD5050-package bit-controlled serially connected semi-intelligent RGB LEDs (WS2812). Placed approximately 7 mm apart.
Controlled as an NRZ bitstream, 24 bits per color. I.e., you can set each LED's color brightness with 24-bit precision.
Ready-made code and color maps are readily available, e.g. for Arduino.
Operating voltage 4...7VDC. Note! Current consumption max. 64 x 3 x 20mA = 3,84A.

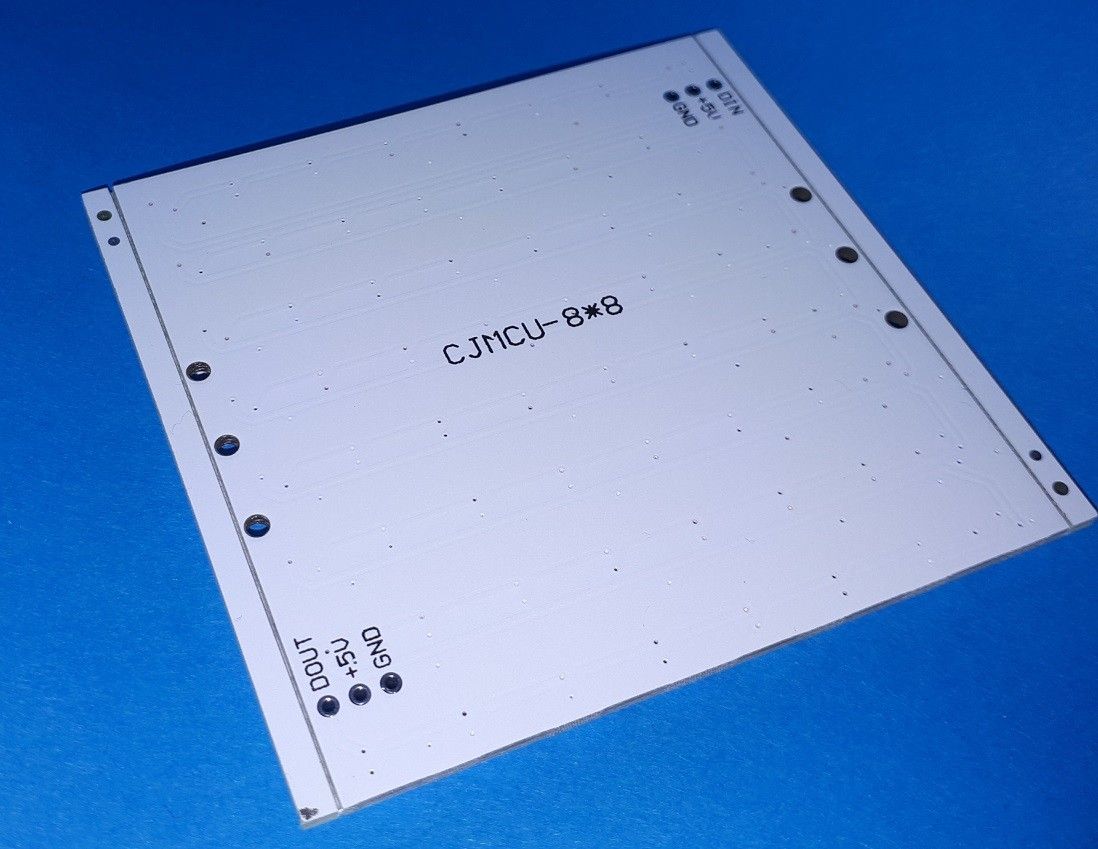

Solder pads underneath on a 100mils grid (e.g. for header pins).
NOTE! The DIN and DOUT markings on the PCB are swapped, i.e. control to the DOUT point
board dimensions: 66 x 73 mm
Demo unit visible in operation in the store

Product Information

Availability In stock
Manufacturer Noname
Product path Home Components Optical Components LEDs Controllable LEDs RGB LED MATRIX BOARD 64x WS2812 8x8
SKU LEDRGB-MOD64
