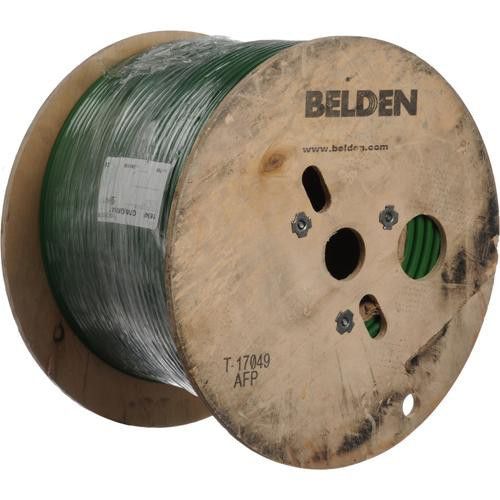

High-quality RG6 cable suitable for indoor and outdoor installations on a 305 meter wooden reel. This cable is particularly suitable for HDTV/SDI applications due to its characteristics. The cable is also UV-resistant.

Center conductor Ø 1.02 mm ± 0.03 mm
Dielectric Ø 4.57 mm ± 0.15 mm
Outer diameter Ø 5.4 mm
Color Green
Material FRNC (Flame Retardant Non Corrosive material)

Frequency	Nom. Attenuation
1 MHz	0.23 dB/100ft
3.58 MHz	0.44 dB/100ft
5 MHz	0.51 dB/100ft
6 MHz	0.56 dB/100ft
7 MHz	0.59 dB/100ft
10 MHz	0.70 dB/100ft
12 MHz	0.75 dB/100ft
25 MHz	1.04 dB/100ft
55 MHz	1.45 dB/100ft
67.5 MHz	1.58 dB/100ft
71.5 MHz	1.62 dB/100ft
88.5 MHz	1.78 dB/100ft
100 MHz	1.89 dB/100ft
135 MHz	2.10 dB/100ft
143 MHz	2.16 dB/100ft
180 MHz	2.44 dB/100ft
270 MHz	2.97 dB/100ft
360 MHz	3.45 dB/100ft
540 MHz	4.30 dB/100ft
720 MHz	5.00 dB/100ft
750 MHz	5.10 dB/100ft
1000 MHz	5.90 dB/100ft
1500 MHz	7.30 dB/100ft
2000 MHz	8.50 dB/100ft
2250 MHz	9.10 dB/100ft
3000 MHz	10.6 dB/100ft
4500 MHz	13.2 dB/100ft
6000 MHz	15.5 dB/100ft
12000 MHz	23.0 dB/100ft

Product Information

Availability Outsale
Manufacturer Belden
Product path Home Cables Raw Cables RF Raw Cables Antenna Cables 75ohm RG6/U 4K UHD Precision Video coaxial cable, 75 ohm
SKU 4694ANHN3U1000
Attributes
- Color vihreä
- Manufacturer's model 4694ANH.N3U
- Click for more details https://www.belden.com/products/cable/broadcast-cable/sdi-video-coax-cable/4694anh
- Impedance 75 Ohm
- Manufacturer's model 4694ANH.N3U
- Click for more details https://www.belden.com/products/cable/broadcast-cable/sdi-video-coax-cable/4694anh
- Impedance 75 Ohm

RG6/U 4K UHD Precision Video coaxial cable, 75 ohm

RG6/U 4K UHD Precision Video coaxial cable, 75 ohm
