RF COAXIAL CABLE 50ohm RG-213 100m

Temporarily out of stock

SKU#: KAA-ANT-RG213-100M

RF COAXIAL CABLE 50ohm RG-213 100m

RF COAXIAL CABLE 50ohm RG-213 100m

Temporarily out of stock

SKU#: KAA-ANT-RG213-100M

294,50 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

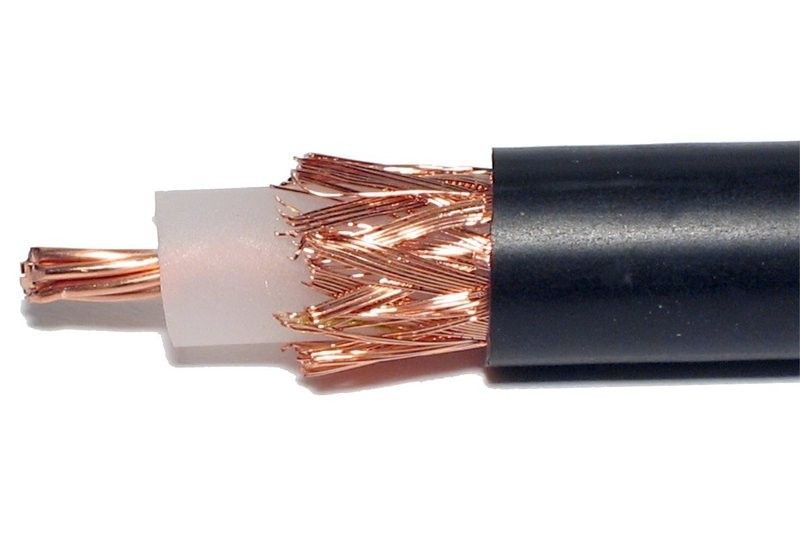

Product Description

center conductor: 7 x Ø 0,75 mm (total 2,25 mm)
insulation: LD-PE Ø 7,24 mm
outer conductor: pure copper braid
jacket: Ø 10,30 mm black PVC plastic
impedance: 50 ohm ±2
inner conductor DC resistance: 0,55 ohm / 100 m
outer conductor DC resistance: 0,45 ohm / 100 m
capacitance: 101 pF / m
voltage withstand: 3700V
minimum bending radius: 50 mm
operating temperature: -25...+70°C
power handling: 0,71 kW / m
attenuation per meter (dB / 1 m):

10 MHz 0,018 dB
100 MHz 0,064 dB
500 MHz 0,160 dB
1000 MHz 0,242 dB
2000 MHz NS
3000 MHz 0,585 dB

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Bedea
Product path Home Cables Raw Cables RF Raw Cables Antenna Cables 50ohm RF COAXIAL CABLE 50ohm RG-213 100m
SKU KAA-ANT-RG213-100M
Attributes
- Quantity 100m / kela
- Color musta
- Length 100m
- Weight 15.8 kg
- Manufacturer's model RG 213 1097
- Dimensions Ø 10.3 mm
