RF CABLE N / RP-SMA CFD400 1m

Name: RF CABLE N / RP-SMA CFD400 1m
Brand: RF Explorer
SKU: SEEED-321990875
Price: 18.56 EUR
Availability: InStock

Temporarily out of stock

SKU#: SEEED-321990875

RF CABLE N / RP-SMA CFD400 1m

Temporarily out of stock

SKU#: SEEED-321990875

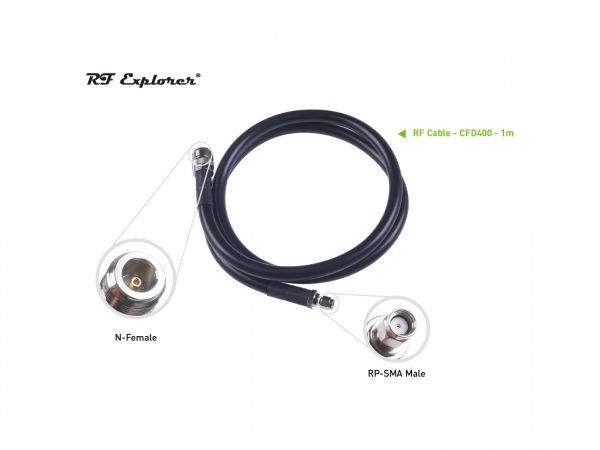

Seeed Studio 321990876 - 1 meter RF cable with N female / RP-SMA male connectors. Compatible with, among others, the SenseCAP M1 gateway and fiberglass antenna.

18,56 €

Temporarily out of stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

CFD400 is an industrial-grade cable that provides low signal loss, long working expectations, and qualification for outdoor deployment. It is able to connect to an antenna for better coverage and connect to SenseCAP M1 Indoor Gateway and SenseCAP Outdoor Gateway for better data transmission.

Features

Perfect connector match with RF Explorer high-performance antennas and SenseCAP M1 Indoor Gateway
Low insertion loss: Typical 0.45db @ 900MHz
Low VSWR: Typical 1.1 @ 900MHz
Robust construction for outdoor usage: Tinned copper wire for braid material, significantly reduces the interruption.

Specification

Frequency Range	0-6000MHz
Length	1 meter ±30mm
Impedance	50Ω
VSWR	Typical 1.1 @ 900MHz ≤1.5 max @ 6GHz
Insertion Loss	Typical 0.15db @ 900MHz ≤1.5dB max @ 6GHz
Capacitance	76pF/m
Velocity of Propagation	85%
Connectors	Type N Male/Jack Type RP SMA Male
Insulation Resistance	> 1,000 MΩ
Bend Radius	Min 25.4mm
Voltage Breakdown	2.5KV
External Cable Diameter	10.3mm
Connectors	Type N Female Type RP-SMA Male
Mating Cycles	> 500
Jacket Material	PE

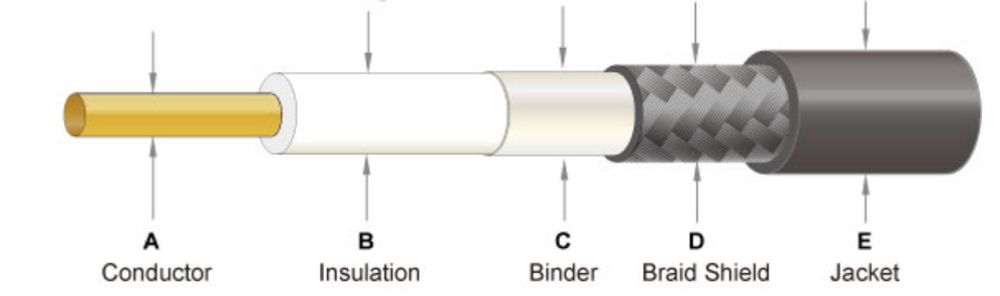

Conductor Material	Copper
Binder Material	Aluminum/PE Tape
Braid Material	Tinned copper wire
Operation Temperature	-30°C to +65°C
Environmental	RoHS

Part list

1 x CFD400 1 meter cable

Documentation

CFD400 Cable Datasheet (1meter)

Product Information

Availability Temporarily out of stock
Manufacturer RF Explorer
Product path Home measuring-instruments electronic-measuring-instruments Spectrum Analyzers RF CABLE N / RP-SMA CFD400 1m
SKU SEEED-321990875
Attributes
- Length 1,0m
- Connector-A N
- Connector-B SMA Reverse
- Manufacturer's model 321990875
- Click for more details https://www.seeedstudio.com/RF-Cable-N-Female-to-RP-SMA-Male-CFD400-Black-1m-p-5322.html
