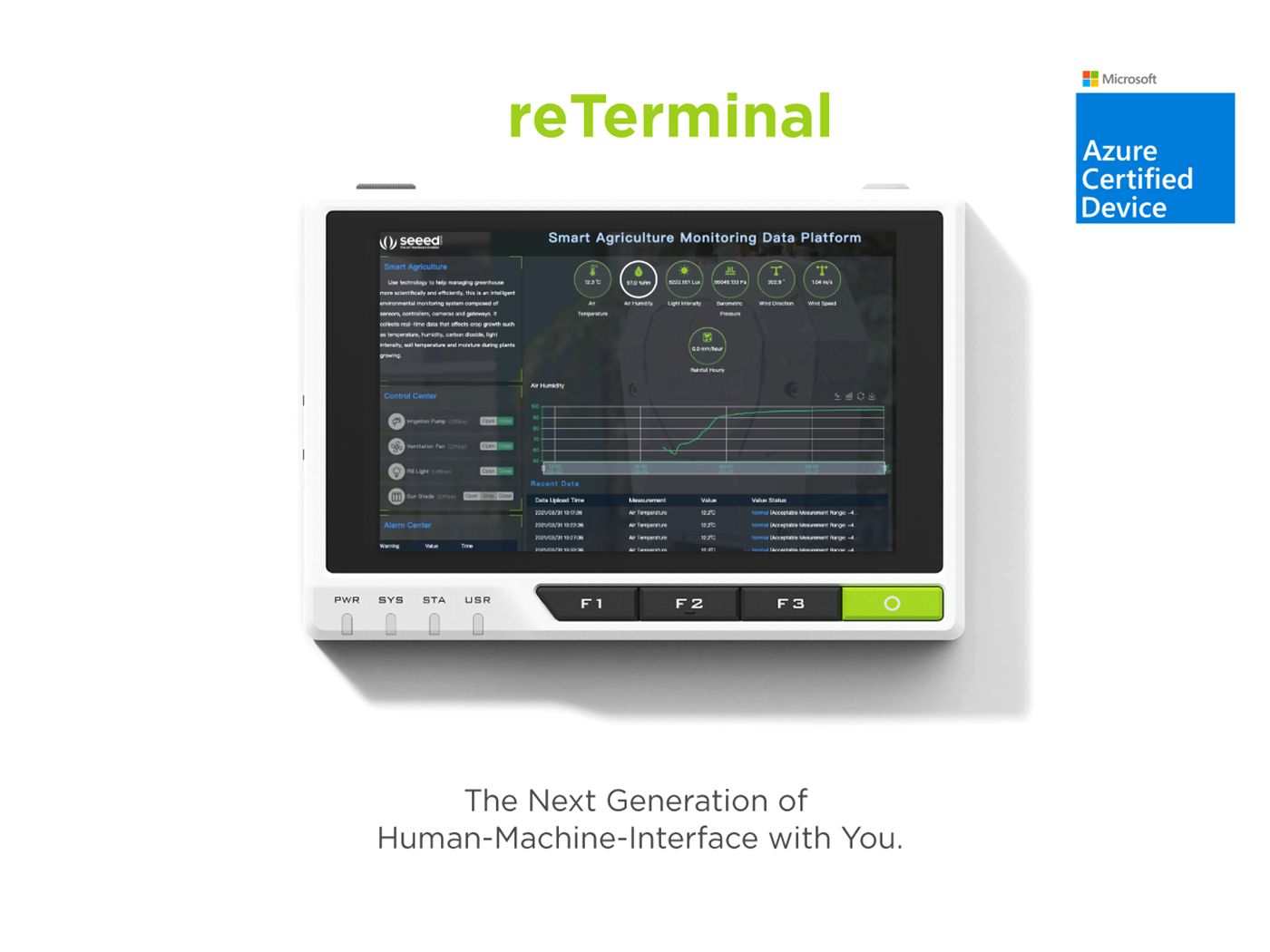

Seeed Studio 110070048 - reTerminal CM4104032- Embedded Linux with Raspberry Pi CM4 and 5-inch capacitive multi-touch display

This product is sold out!

Would you like to buy a similar product? No worries, you can:

Buy products from the brand Seeed Studio
Or you can request product availability notifications to your email at the bottom of the page.

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

PRODUCT INFORMATION

Features

Integrated modular design with high stability and expandability
Powered by Raspberry Pi Computer Module 4 with 4GB RAM and 32GB eMMC.
5-inch capacitive IPS multi-touch color display 1280 x 720 with 293 PPI resolution.
Wireless connectivity with dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth 5.0 BLE.
High-speed expansion interface and versatile I/O increase expandability.
Cryptographic co-processor with secure hardware-based key storage.
Built-in modules such as accelerometer, light sensor and RTC.
Gigabit Ethernet port and two USB 2.0 Type-A ports.
40-pin Raspberry Pi compatible connector for IoT applications
reTerminal is Microsoft Azure certified
Remote management support from partner Mender.io (OTA software updates, configuration, troubleshooting, remote access to the endpoint).

Applications

Embedded Linux endpoint
Smart factory
Smart warehouse
Smart home
Machine learning and Edge AI applications
IoT controller
Handheld device

Specifications

Specification	Details
Platform	Processor	Broadcom BCM2711 quad-core Cortex-A72 (ARM v8)
Clock	64-bit SoC @ 1.5GHz
Memory	Capacity	4 GB
Technology	LPDDR4 with on-die ECC memory
eMMC	Capacity	32 GB
Wireless	Wi-Fi	2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac
Bluetooth	Bluetooth 5.0, BLE
Display	LCD	5-inch 720x1280 LCD display
Touchscreen	Capacitive touch panel (supports multi-touch)
Video	HDMI	1 x Micro HDMI output (supports up to 4Kp60)
CSI	1 x 2-lane MIPI CSI camera interface
Multimedia	H.265 (4Kp60 decoding)
H.264 (1080p60 decoding, 1080p30 encoding)
OpenGL ES 3.0 graphics
Built-in modules	Real-time clock	NXP Semiconductors PCF8563T
Low standby current; typically 0.25μA when VDD = 3.0 V and temperature = 25 ℃.
Accelerometer	STMicroelectronics LIS3DHTR
16-bit, ±2g/±4g/±8g/±16g dynamically selectable full scale.
Security	Microchip ATECC608A
Secure hardware-based key storage, asymmetric signing, authentication, key agreement
Light sensor	Lewei LTR-303ALS-01
Digital light sensor
Internal IO Expansion	Microchip MCP23008-E
Buzzer	≥85dB @10cm 2700±300Hz
External I/O	GPIOs	Up to 5 × UART
Up to 5 × I2C
Up to 5 × SPI
1 × SDIO interface
1 × DPI (parallel RGB display)
1 × PCM
1 × PWM channel
Up to 3 × GPCLK outputs
Vertical expansion connector	1 × PCIe 1-lane host, Gen 2 (5 Gbps)
1 × USB 2.0 port (high-speed)
26 x GPIOs
POE
Power	Voltage	5V DC
Current	3A (minimum)
Temperature	Operating temperature	0 - 70°C (for LCD panel: 0 - 60°C)

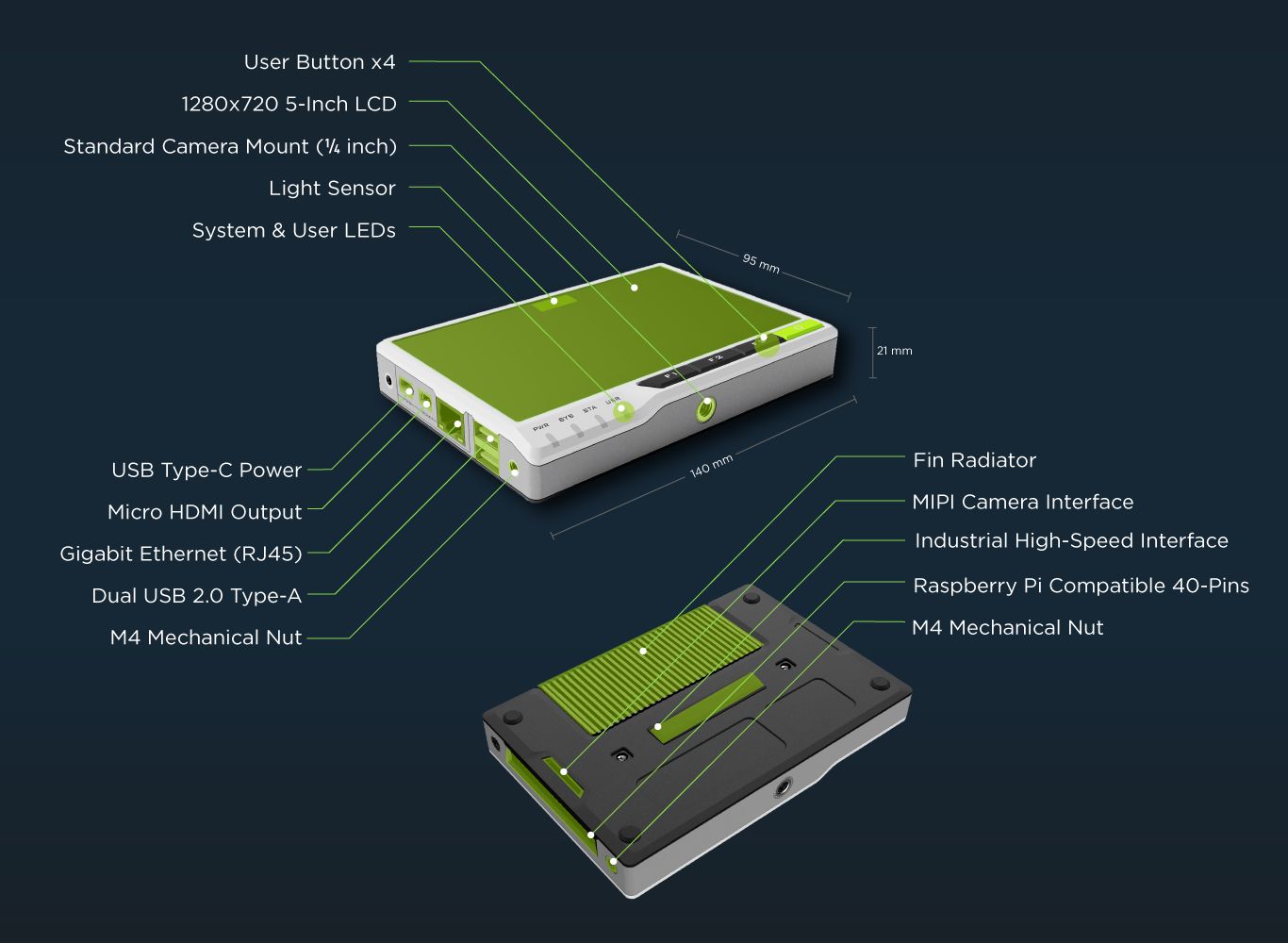

Mechanical	Dimensions	140mm x 95mm x 21mm
Weight	285g
Certification	Certifications	CE, FCC, TELEC(211-210815)

Video

Product Information

Availability Removed from selection
Manufacturer Seeed Studio
Product path Home development-cards industrial-raspberry-pi Raspberry Pi CM baseboards reTerminal - Embedded Linux Computer +TFT
SKU SEEED-110070048
Attributes
- Compatible Raspberry Pi Compute Module 4 (CM4)
- RAM Memory 4GB
- Memory FLASH 32GB
- Network Connections Ethernet,BT,Wifi
- Processor ARM Cortex-A72 (BCM2711)
- Manufacturer's model 110070048
- Click for more details https://www.seeedstudio.com/ReTerminal-with-CM4-p-4904.html
- Delivery time 2-3 weeks
