Note! Not for professional use. Do not use to control mains-voltage equipment. Only for under 50VAC/DC.

You can independently control the module's eight relays. The inputs are equipped with optocouplers which provide better protection. All connections use screw terminal strips. Indicator LEDs show the state of each relay.

Features

• Board with 8 pcs 5V control-voltage relays
• Relay contacts: 10A 250VAC / 30VDC
• Optocouplers on the control inputs
• Operating voltage: 5VDC
• Power consumption: approx. 80 mA / channel
• Each channel has its own indicator LED and one power-on LED
• Trigger mode selection - active HIGH or LOW
• Screw terminals for inputs and outputs
• Relay NO and NC contacts on the outputs
• Mounting holes on the board edges, holes dia. 3 mm
• Dimensions: 141 x 50 x 20 mm

Delivery

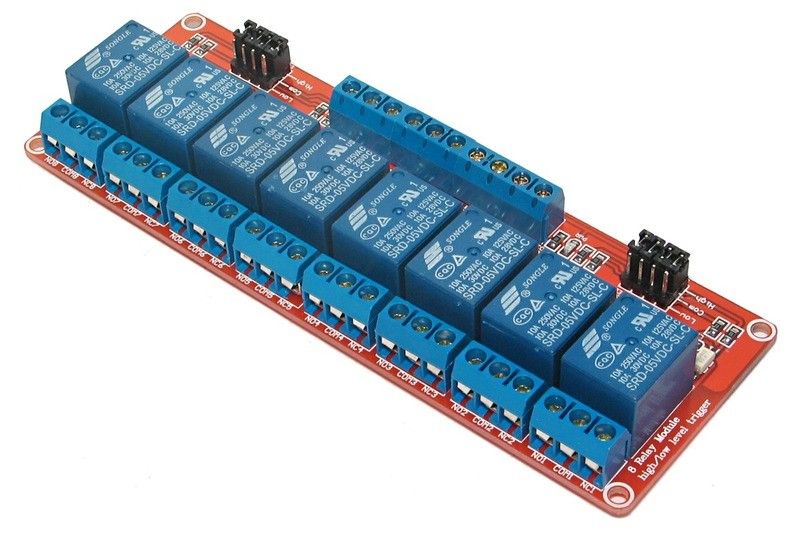

• 1x RELAYMOD 8 ISO Relay board with eight relays
