Note! Not for professional use. Do not use to control mains-powered devices. For use only under 50VAC/DC.

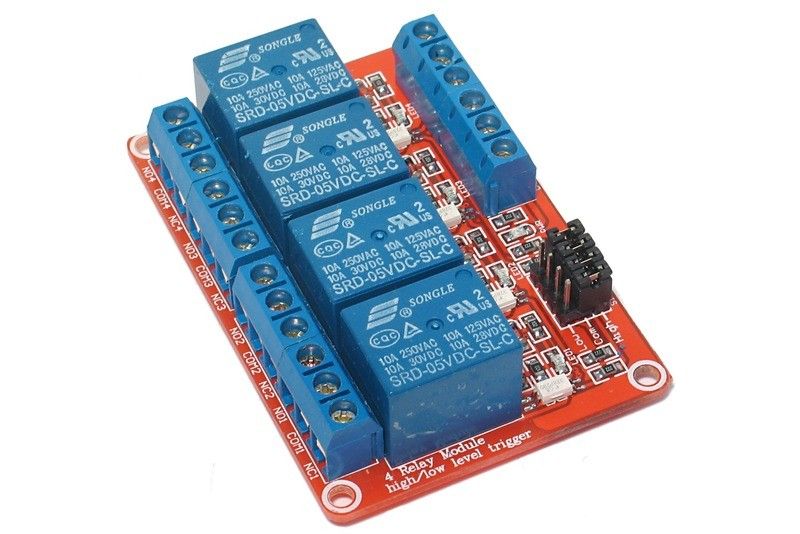

You can independently control the four relays on the module. The inputs are equipped with optocouplers which provide better protection. All connections are screw-terminal strips. Indicator LEDs show the status of each relay.

Features

• The board has 4 relays with 5V control voltage
• Relay contacts: 10A 250VAC / 30VDC
• Opto-isolators on the control inputs
• Supply voltage: 5VDC
• Power consumption: approx. 80 mA / channel
• Each channel has its own indicator LED and one power-on LED
• Trigger mode selectable - HIGH or LOW active
• Screw terminals for inputs and outputs
• Relays have NO and NC contacts on the outputs
• Mounting holes on the board edges, holes ø 3 mm
• Dimensions: 73 x 50 x 20 mm

Delivery

• 1x RELAYMOD 4 ISO relay board with four relays
