Note! Not for professional use. Do not use to control mains-voltage equipment. For use only below 50VAC/DC.

You can independently control the module's two relays. The inputs are equipped with opto-isolators which provide better protection. All connections are screw terminal strips. Status LEDs indicate the state of each relay.

Features

• The board has 2 × 5V control-voltage relays
• Relay contacts: 10A 250VAC / 30VDC
• Opto-isolators on the control inputs
• Operating voltage: 5VDC
• Power consumption: approx. 80 mA / channel
• Each channel has its own status LED and there is one power-on LED
• Selectable trigger mode - active HIGH or LOW
• Screw terminals for inputs and outputs
• Relays' NO and NC contacts on the outputs
• Mounting holes on the PCB edges, holes dia. 3 mm
• Dimensions: 41 x 50 x 20 mm

Package contents

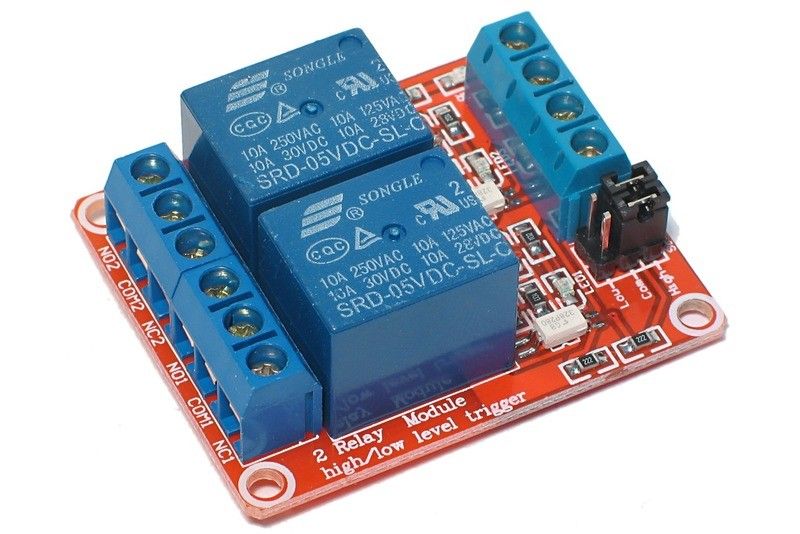

• 1x RELAYMOD 2 ISO relay board with two relays
