Note! Not for professional use. Do not use to control mains-powered equipment. For use only under 50VAC/DC.

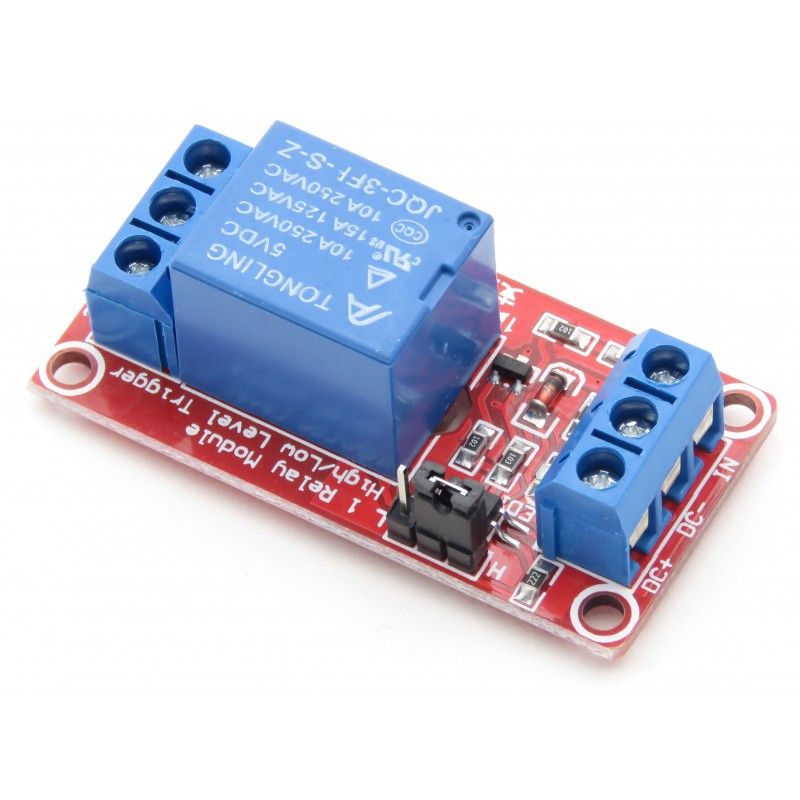

You can control a single relay on the module. The input is equipped with an optocoupler for better protection. All connections use screw terminal blocks. Indicator LEDs show the relay status.

Features

• Board includes 1 x 5V control-voltage relay
• Relay contacts: 10A 250VAC / 30VDC
• Optocouplers on the control inputs
• Operating voltage: 5VDC
• Power consumption: approx. 80 mA / channel
• Each channel has its own indicator LED and one power-on LED
• Trigger mode selectable — active HIGH or LOW
• Screw terminals for inputs and outputs
• Relay NO and NC contacts on the outputs
• Mounting holes on the board edges, holes Ø 3 mm
• Dimensions: 41 x 50 x 20 mm

Delivery

• 1x RELAYMOD 1 ISO relay board with one relay
