Note! Not for professional use. Do not use to control mains-voltage equipment. Only for voltages below 50VAC/DC.

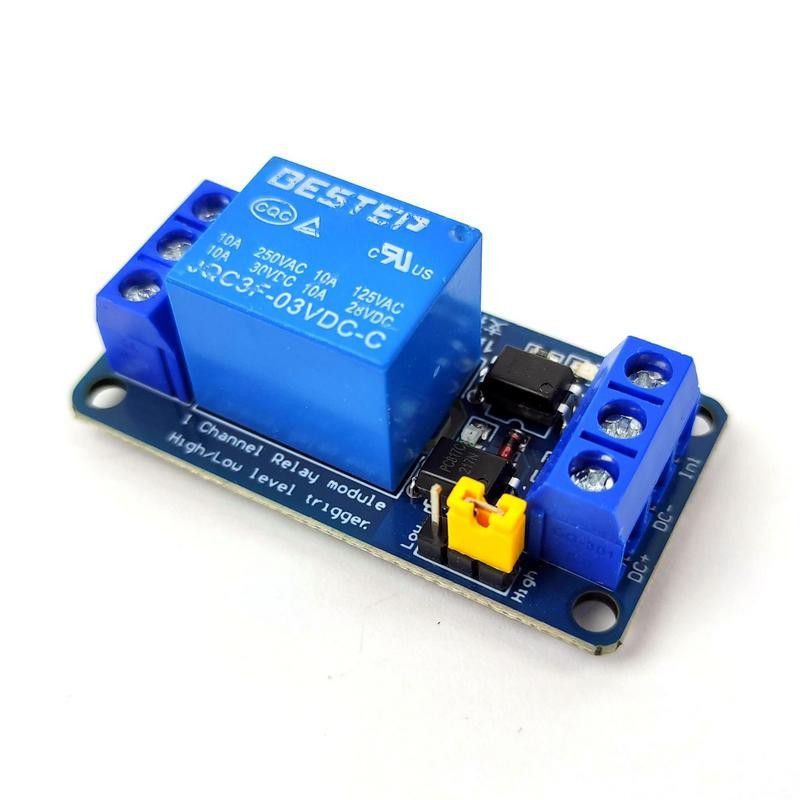

You can control the single relay on the module. The input is equipped with an optocoupler which provides better protection. All connections are screw terminal blocks. Status LEDs indicate the relay state.

Features

• Board has 1x relay with 3.3V control voltage
• Relay contacts: 10A 250VAC / 30VDC
• Optocouplers on the control inputs
• Operating voltage: 3.3VDC
• Power consumption:
• Each channel has its own indicator LED and there is one power-on LED
• Selectable trigger mode - HIGH or LOW active
• Screw terminals for inputs and outputs
• Relay NO and NC contacts on outputs
• Mounting holes on the board edges, hole dia. 3 mm
• Dimensions:

Connections

• DC+ = +3.3VDC
• DC- = GND (ground or 0V)
• In1 = control signal, 3.3V = logic High; 0V = logic Low

Package contents

• 1x opto-isolated relay board with one relay
