Note! that it only support NB Iot Sim card only and the location must have NB-IoT network coverage (B3, B8, B20 and B28).

Note! Raspberry board is not included.

Features

• Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
• Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
• Supports GNSS positioning (GPS, GLONASS, BeiDou and Galileo)
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
• Breakout UART control pins, to connect with host boards like Arduino/STM32
• Onboard voltage translator, 3.3V by default, allows being switched to 5V via 0Ω resistor

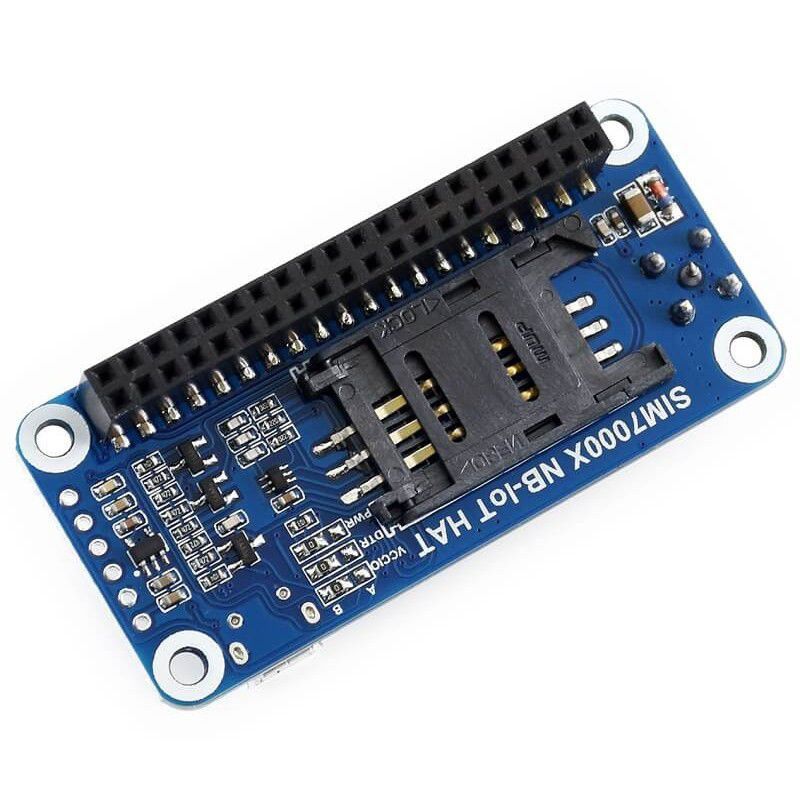

• SIM card slot, compatible with both normal SIM card and NB-IoT specific card
• 2x LED indicators, easy to monitor the working status
• Baudrate: 300bps~3686400bps
• Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
• Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
• Compatible with:
  • Raspberry Pi 4 Model B (1GB, 2GB, 4GB)
  • Raspberry Pi 3 Model B+
  • Raspberry Pi 3 Model B
  • Raspberry Pi 3 Model A+
  • Raspberry Pi Zero
  • Raspberry Pi Zero W
  • Raspberry Pi Zero WH

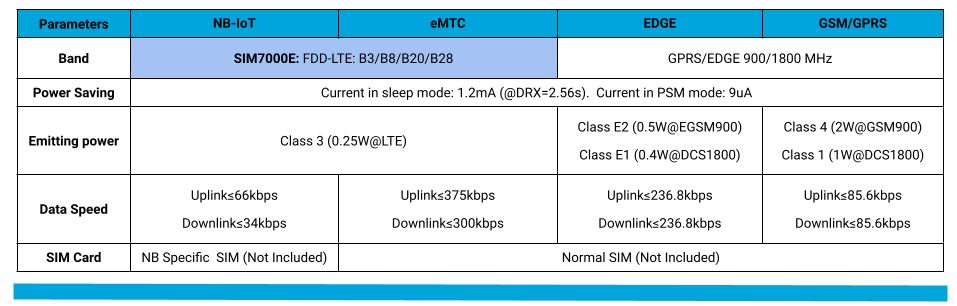

Communications Specifications

[img-24916-left-desc_default]

GNSS Specifications

• Receiver type:
  • 16-channel
  • C/A code
• Sensitivity:
  • Tracking: -162 dBm (GPS)/-157 dBm (GLONASS)/TBD (BD)
  • Cold starts: -148 dBm
• Time-To-First-Fix:
  • Cold starts: less than 35s
  • Hot starts: less than 1s
• Accuracy
  • Position: less than 2.5m CEP

Other Specifications

• Power supply: 5V
• Operating voltage: 5V/3.3V (3.3V by default)
• Sleep Mode current: 1.2mA(@DRX=2.56s)
• Power Save Mode current: 9uA
• Operating temperature: -40°C ~ 85°C
• Storage temperature: -45°C ~ 90°C
• Dimension: 30.2mm x 65mm

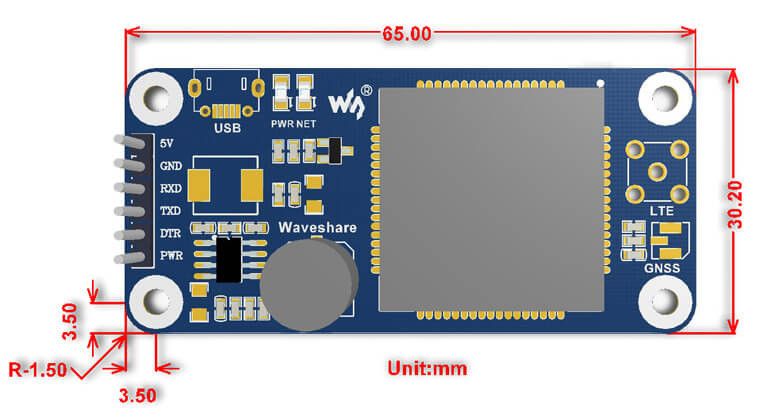

Dimensions

[img-24920-left-desc_default]

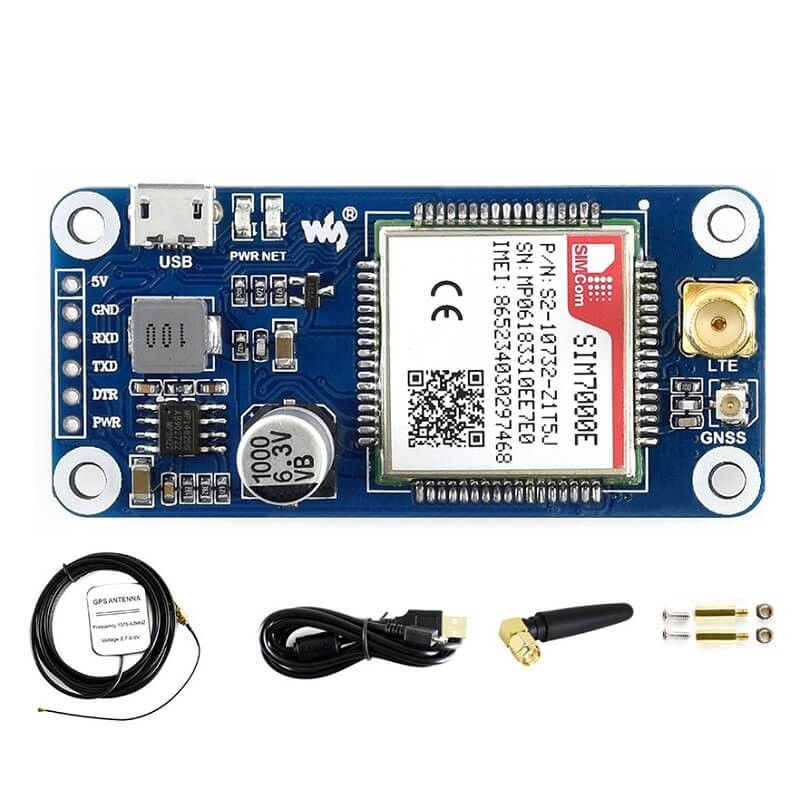

Packing list

• 1 x NB-IoT SIM7000E HAT
• 1 x GSM Antenna
• 1 x GPS External Antenna (B)
• 1 x USB type A plug to micro plug cable
• 1 x RPi screws pack (2pcs)

Links

• SIM7000E NB-IoT HAT, Waveshare Wiki
• Manual
• Schematic
• Source code
• SIM7000 Driver
