Note! You need a Raspberry Pi Pico equipped with male pins.

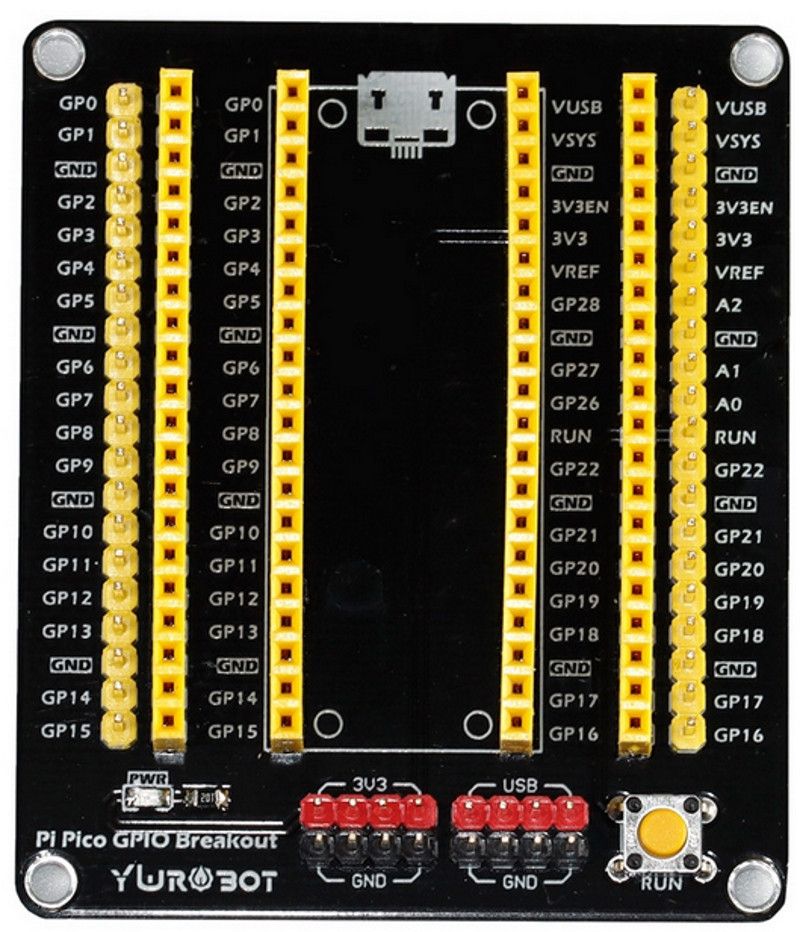

Handy accessory for tinkering with the Pico. No soldering required or wondering which pin was which. Clear markings on the board help prevent incorrect connections.

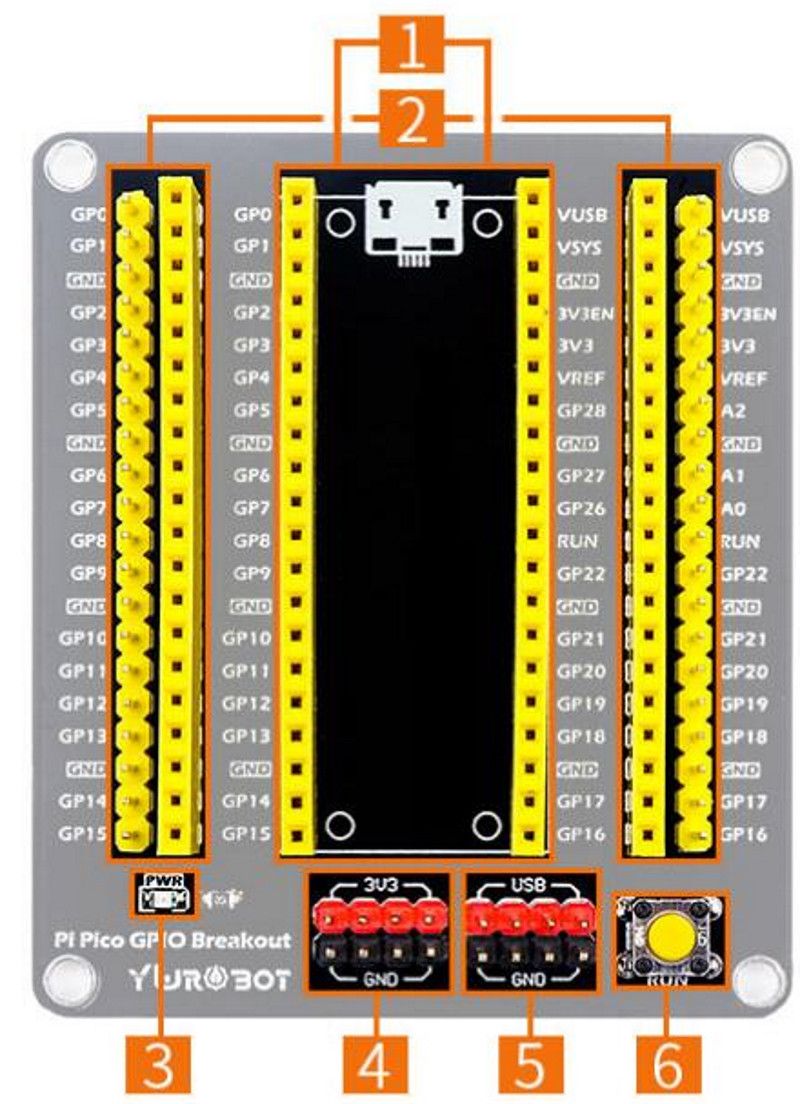

Connections as shown in the image

1. Pico socket
2. GPIO pins
3. Power indicator LED
4. 3.3V output
5. 5V output
6. Reset button

Specifications

• Voltages: 3.3 V / 5 V
• Voltage outputs use male pins
• GPIO voltage levels: 3.3 V
• GPIO pins: 40 pcs (conveniently available as male and female pins)
• Board size: 69 x 59 mm

Package contents

• 1 x Raspberry Pico GPIO Expansion Board
