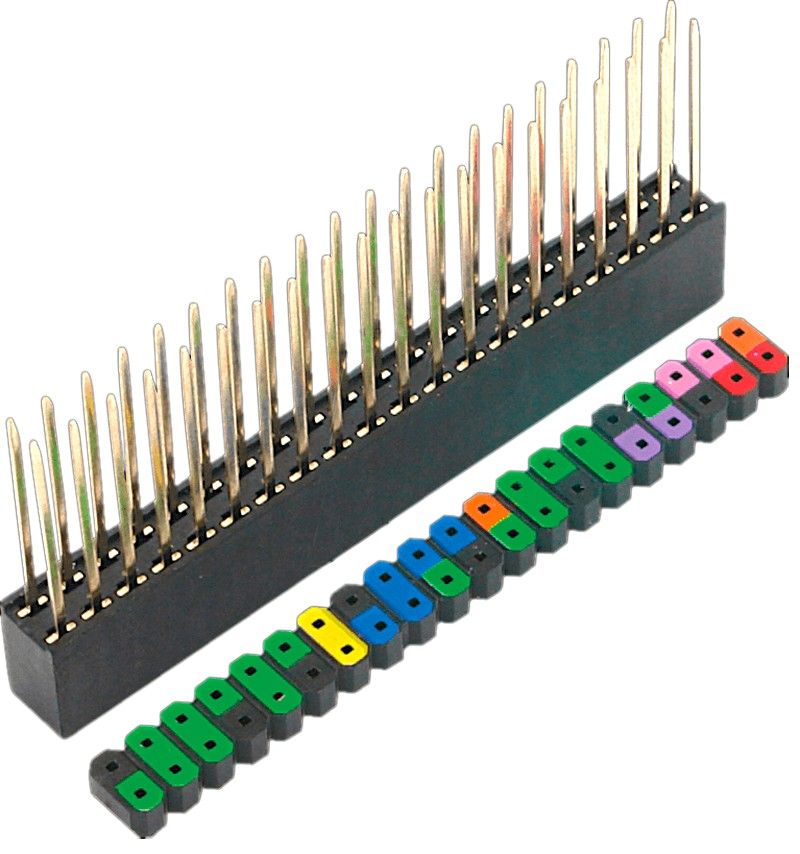

Note! The color strip can be detached and placed, for example, onto the pins of a top hat.

Color coding

• Orange = 3.3 V
• Red = 5 V
• Pink = I2C
• Purple = UART
• Blue = SPI
• Yellow = DNC (reverse I2C)
• Green = GPIO
• Black = GND (earth)

Specifications

• 40-pin color-coded male header connector for Raspberry Pi (GPIO) use
• Two rows, 20 pins in each
• Pitch R2.54 mm
• Pin dimensions: 0.64 x 0.4 mm
• Pin total length: 13.3 mm
• Overall height: 24.3 mm
