RASPBERRY PI ZERO 2 WH WITH PIN HEADER

Name: RASPBERRY PI ZERO 2 WH WITH PIN HEADER
Brand: Raspberry Pi
SKU: SC0721
Price: 19.43 EUR
Availability: InStock

Temporarily out of stock

SKU#: SC0721

RASPBERRY PI ZERO 2 WH WITH PIN HEADER

Temporarily out of stock

SKU#: SC0721

A new, more powerful version of the Raspberry Pi Zero, now also with a pin header. The RP3A0 SoC die brings a quad-core A53 and about half a gig of memory, enhanced with WiFi and BT4.2 wireless connectivity. Compatible with previous Zero boards.

19,43 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

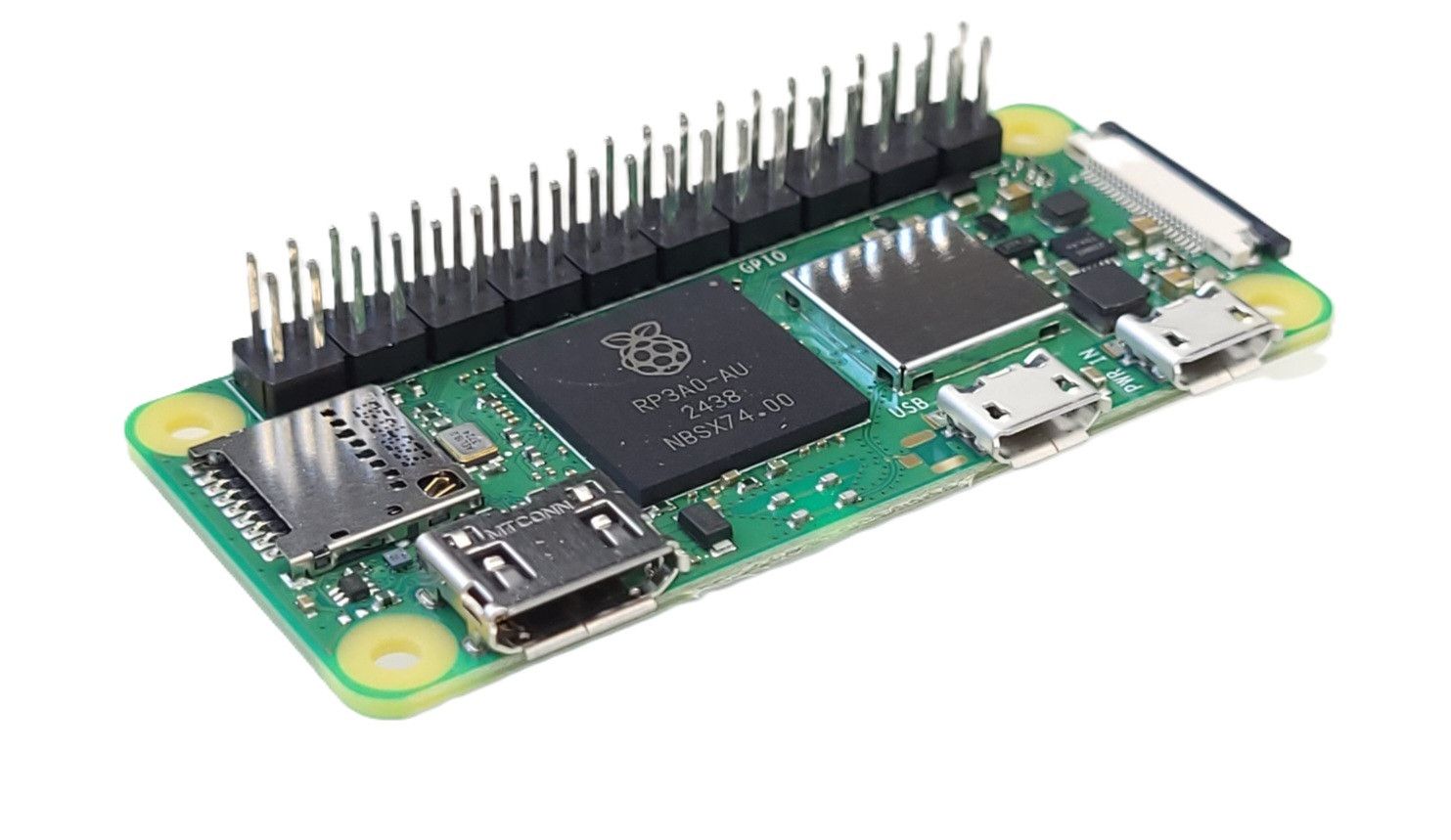

At the heart of Raspberry Pi Zero 2 W is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero. Processing power is comparable to Raspberry Pi 3.

Wireless LAN is built in to a shielded enclosure with improved RF compliance, giving you more flexibility when designing with Raspberry Pi Zero 2 W.

It has the same footprint and 40 pin GPIO arrangement as the Zero and Zero W, so it should be compatible with most existing add-ons.

Raspberry Pi Zero 2 W is footprint-compatible with earlier members of the Zero family and in the same tiny 65mm × 30mm form factor.

Specifications

1GHz quad-core 64-bit Arm Cortex-A53 CPU
512MB SDRAM
2.4GHz 802.11 b/g/n wireless LAN
Bluetooth 4.2, Bluetooth Low Energy (BLE), onboard antenna
Mini HDMI port and micro USB On-The-Go (OTG) port
microSD card slot
CSI-2 camera connector
HAT-compatible 40-pin header footprint (unpopulated)
H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30)
OpenGL ES 1.1, 2.0 graphics
Micro USB power
Composite video and reset pins via solder test points
65mm x 30mm

Notes

Please be aware that the LED on your Zero 2 won't light up if there's no SD card or if there's a problem with the image. SD cards that work in other models of Pi are not guaranteed to work in your Zero 2, so try flashing a fresh image if you're having problems! These instructions from Raspberry Pi will guide you on how to flash Raspberry Pi OS to your SD card.

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Raspberry Pi
EAN 5056561800011
Product path Home Development Cards Raspberry Pi Raspberry Pi Zero RASPBERRY PI ZERO 2 WH WITH PIN HEADER
SKU SC0721
