Raspberry Pi Touch Display 2 - 5-inch capacitive touchscreen for Raspberry Pi computers. 720 × 1280 pixel resolution, five-finger multi-touch support and an anti-glare surface.

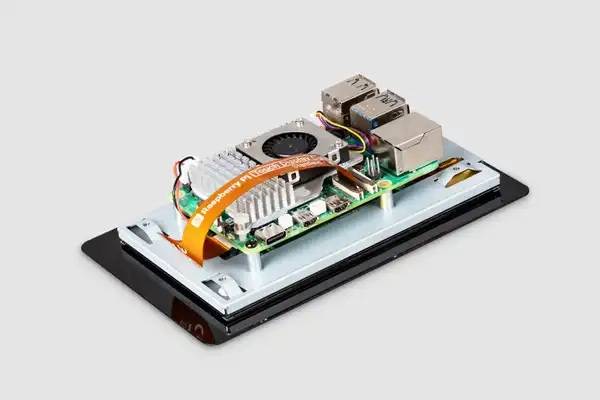

The display connects to the Raspberry Pi computer via the DSI connector, and power is supplied from the GPIO header. Raspberry Pi OS includes ready-made touch drivers and keyboard functionality, allowing use without a separate keyboard or mouse.

The display is suitable for example for user interface panels, embedded systems, media projects and interactive touchscreen applications.

• Capacitive multi-touch: Supports up to five simultaneous touch points.
• DSI connection: Direct connection to the Raspberry Pi computer without an HDMI adapter.
• Ready drivers: Raspberry Pi OS includes touchscreen support.
• Anti-glare surface: Improves readability in various lighting conditions.
• Wide viewing angle: 85° viewing angle in all directions.

Features

• Display size: 5"
• Resolution: 720 × 1280 pixels
• Display type: TFT LCD, Normally White, transmissive
• Color depth: 24-bit RGB
• Active display area: 62.1 mm × 110.4 mm
• Viewing angle: 85°
• Touch panel: Capacitive multi-touch, 5 touch points
• Surface: Anti-glare
• Connector: DSI
• Compatibility: Raspberry Pi computers with DSI connector (not the Raspberry Pi Zero series)

Package contents

• Raspberry Pi Touch Display 2 5"
• DSI flat cable
• Mounting accessories

Note! Not compatible with enclosures designed for the Raspberry Pi Touch Display 1 due to changed dimensions.
