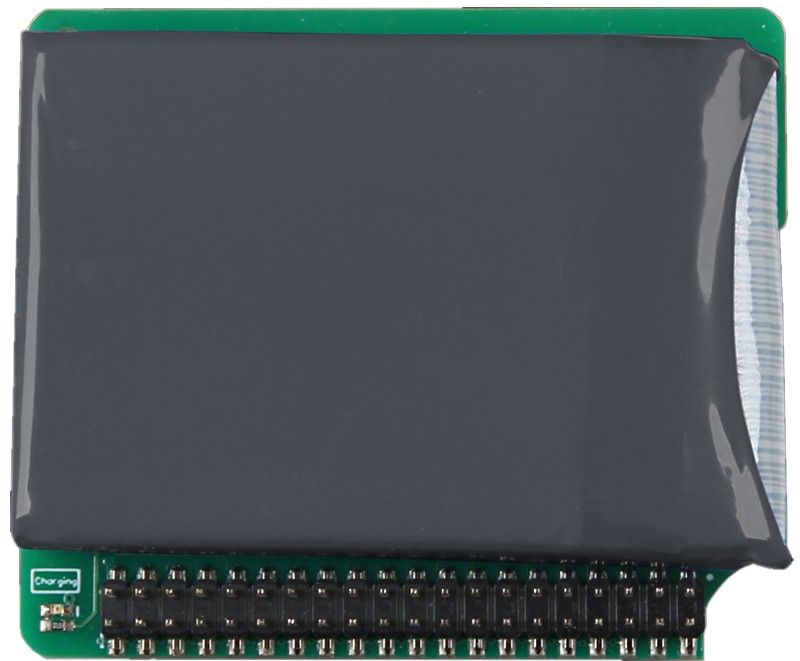

This battery HAT equipped with a LiFePO4 battery turns the StromPi V3 into a full UPS solution. The backup battery is supplied as a third power source; it is monitored and charges automatically. With the nominal capacity doubled, the service life is nearly twice as long compared to a 1000 mAh battery.

It is based on LiFePO4 technology and offers several essential advantages compared to conventional lithium-ion designs:

• increased safety because chemical self-ignition is not possible
• longer service life than lithium-ion technology
• more charge cycles
• the battery charges automatically when operating on an external power source

Protection circuits against overcharge, short circuit and deep discharge are integrated into the battery electronics.

Specs

• Type: Lithium iron phosphate (LiFePO4)
• Capacity: 2000 mAh
• Voltage: 3.2 V
• Special features: can be mounted directly to StromPi 3, charges immediately, pin header passthrough, built-in protection and charging electronics
• Increased safety: chemical self-ignition is not possible
• Significantly longer lifespan than lithium-ion technology
• Dimensions: 65 x 56 x 22 mm
• Delivered items: Battery pack
• EAN: 4250236819891

Note! StromPi 3 extension board is sold separately.

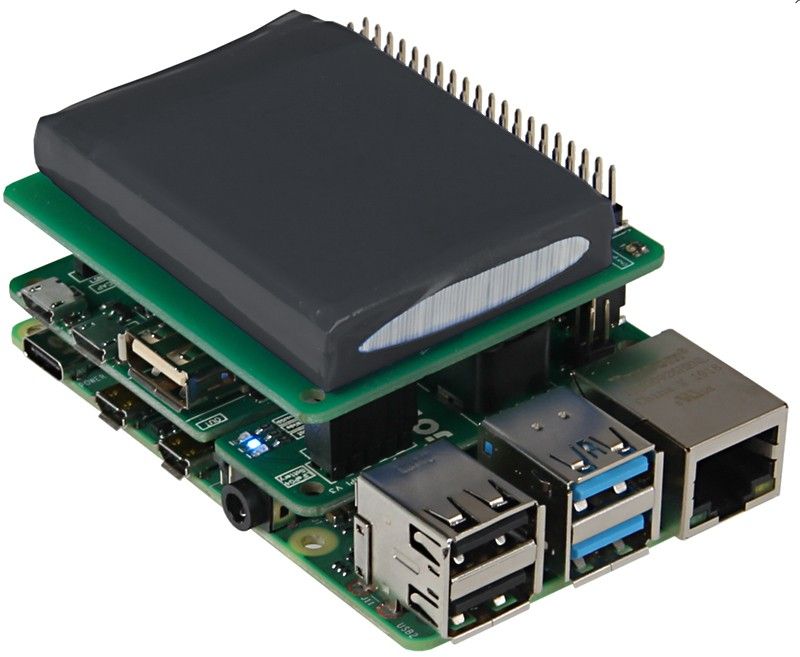

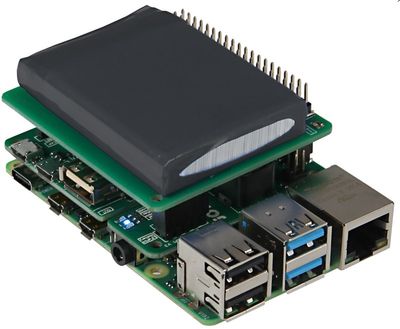

Note! The Raspberry Pi in the additional image is not included.
