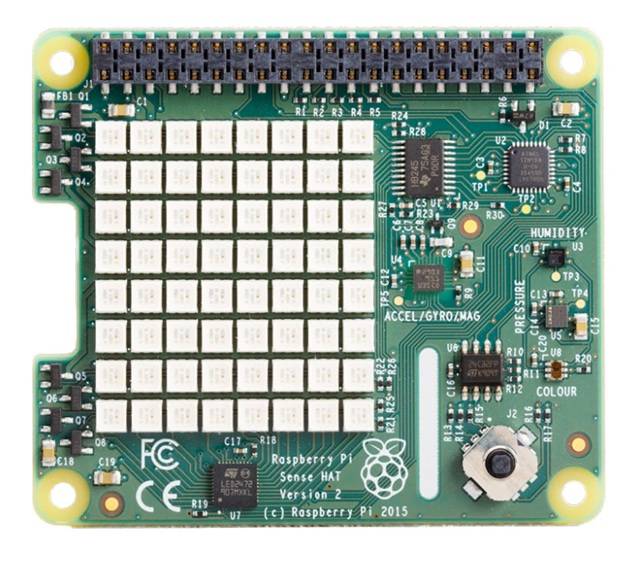

Raspberry Pi Sense HAT expansion board brings versatile sensor capabilities to the Raspberry Pi computer for measuring environment and motion. The board's sensors measure air pressure, temperature, humidity, color, and the device's orientation and movement. The 8×8 RGB LED matrix enables visualization of measurement data, and the five-direction joystick provides an easy interface for projects.

The Sense HAT was originally developed for use on the International Space Station as part of the Astro Pi programme. It is suitable for a variety of projects requiring environmental measurements or motion/orientation detection. The device is powered directly from the Raspberry Pi computer and is compatible with all Raspberry Pi models featuring the 40-pin GPIO header. The official Python library enables easy use of all features.

Features

• Expansion board for Raspberry Pi computers (40-pin GPIO)
• Air pressure and temperature sensor (STMicro LPS25HB)
• Pressure range: 260–1260 hPa
• Temperature measurement range: 0…+65 °C (±2 °C)
• Humidity and temperature sensor (STMicro HTS221)
• Humidity range: 0–100 % RH
• Temperature measurement range: 15…40 °C (±0.5 °C)
• IMU unit (STMicro LSM9DS1): accelerometer, gyroscope and magnetometer
• Accelerometer: ±16 g
• Magnetometer: ±16 gauss
• Gyroscope: ±2000 dps
• 16-bit resolution for all measurement channels
• Color and light sensor (TCS3400)
• 8 × 8 RGB LED matrix display
• 5-direction joystick (up, down, left, right, press)
• Official Python library for sensor and interface control
• Powered by the Raspberry Pi computer

Package contents

• Raspberry Pi Sense HAT expansion board
