Note! USB cable is not included in the package and must be purchased separately.

Features

• The Raspberry Pi Pico W, with header pins pre-soldered, allows users to easily add wireless connectivity to projects. This makes it ideal for wirelessly controlled builds and IoT projects.
• Built-in single-band 2.4 GHz wireless connectivity (802.11n) via the Infineon CYW43439 wireless chip. With WPA3 & a soft access point that supports up to 4 clients.
• The Raspberry Pi Pico platform is a new high-performance microcontroller featuring the Pi-designed ARM-based dual-core RP2040 chip.
• The RP2040 is a Dual ARM Cortex-M0+ @ 133MHz chip.
• The chip includes 256kB of SRAM.
• Support for up to 16 Mb of off-chip flash memory.
• Pre-soldered header pins, so user soldering is not required.
• Micro-USB port for power and data (USB 1.1 device and host support).
• Drag & drop programming over USB.
• Low-power sleep modes and standby.
• On-chip real-time clock and timer.
• Temperature sensor.
• Accelerated floating-point libraries on-chip.
• Flexible interfaces, including 26 multifunction GPIO pins, 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels.
• 8 × programmable I/O (PIO) state machines for custom peripheral support.
• Program it with the C/C++ SDK or MicroPython.
• The Pico W is supplied with pre-soldered header pins compatible with breadboards and standard jumper wires.

Contents

• 1 x Raspberry Pi Pico W - Wireless, with header pins.

Dimensions

• Length: 51.3mm
• Width: 21mm
• Height: 11.12mm
• Weight: 6g

Documentation

• Raspberry Pi Pico W Datasheet

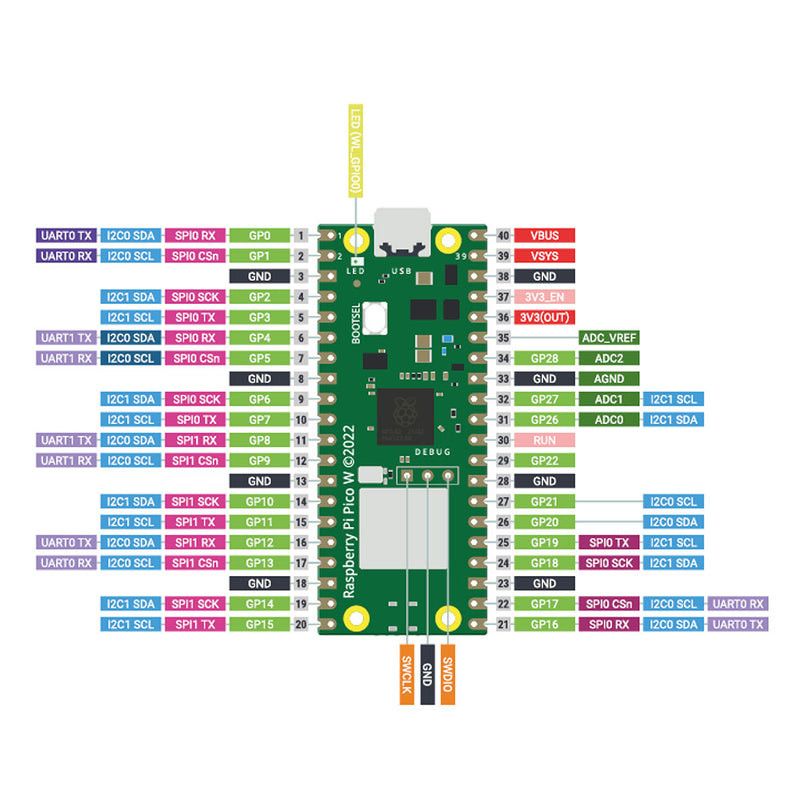

• Raspberry Pi Pico W pinout
• Connecting to the Internet with Raspberry Pi Pico W - Getting the Raspberry Pi Pico W online with C/C++ or MicroPython
• RP2040 Datasheet
• Hardware design with RP2040
• Getting started with the Raspberry Pi Pico - C/C++ development with the Raspberry Pi Pico and other RP2040-based microcontroller boards.
• Pico C/C++ SDK - Libraries and tools for C/C++ development on RP2040 microcontrollers.
• Pico Python SDK - MicroPython environment for RP2040 microcontrollers.
• Download STEP file
• Download Fritzing part
• Note: Although not officially supported, there is a Pico Setup for Windows installer that automates installing the C/C++ SDK on Windows 10.
• Documentation home.
• Thonny Editor - Python IDE for beginners.
