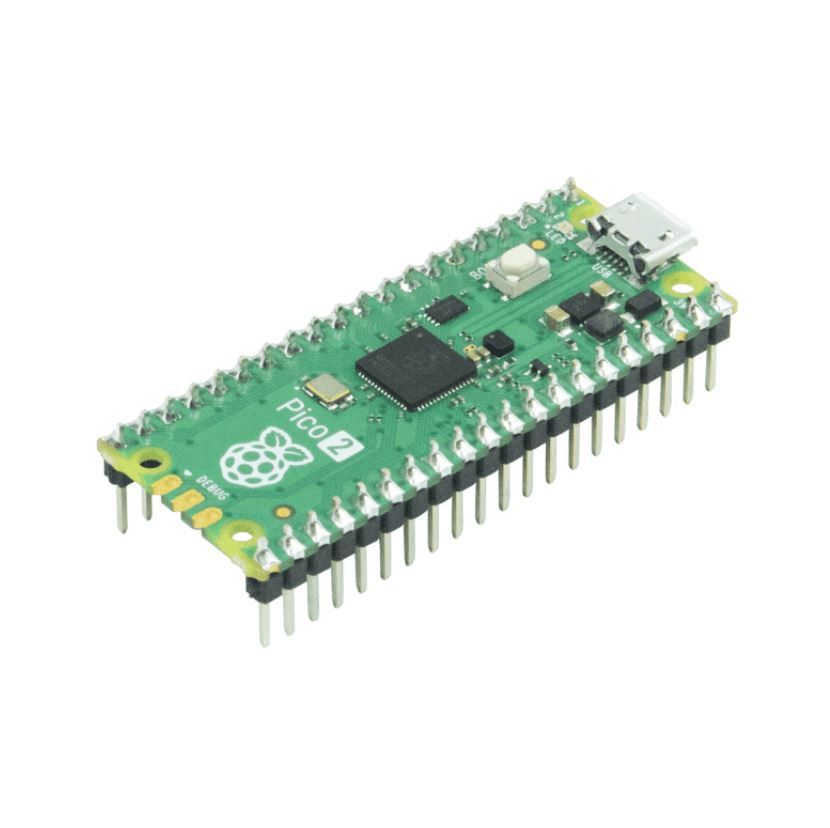

Raspberry Pi Pico 2, with pre-soldered male headers.
Higher core clock frequency, double the memory, more powerful ARM cores, optional RISC-V cores, new security features and improved connectivity make the Raspberry Pi Pico 2 a notably high-performance board while remaining compatible with previous Raspberry Pi Pico series models. Programmable in C/C++ and Python and provided with detailed documentation, the Raspberry Pi Pico 2 is an ideal microcontroller board for both hobbyists and professional developers.
Next-generation silicon
The Raspberry Pi Pico 2 is powered by the RP2350, a new, powerful and secure microcontroller. Every aspect of the design has been improved, from the processor cores to the unique PIO interface system. Raspberry Pi has adopted a comprehensive security architecture based on ARM TrustZone for Cortex-M. New power-saving features and package options broaden the range of possible applications.
Specifications
Two Arm Cortex-M33 or two Hazard3 cores @ 150 MHz
520 KB internal SRAM
Compatible with Raspberry Pi Pico 1 in both software and hardware
Drag-and-drop programming via mass storage over USB
Encapsulated module allows direct soldering to carrier boards
Optional boot signature verified by on-chip mask ROM, key fingerprint in OTP
Protection for an optional boot encryption key in OTP memory
Global bus filtering based on Arm or RISC-V security/privilege levels
Peripherals, GPIOs and DMA channels individually assignable to security domains
Hardware-based protections against fault injection attacks
Hardware SHA-256 accelerator
2× UART
2× SPI controllers
2× I2C controllers

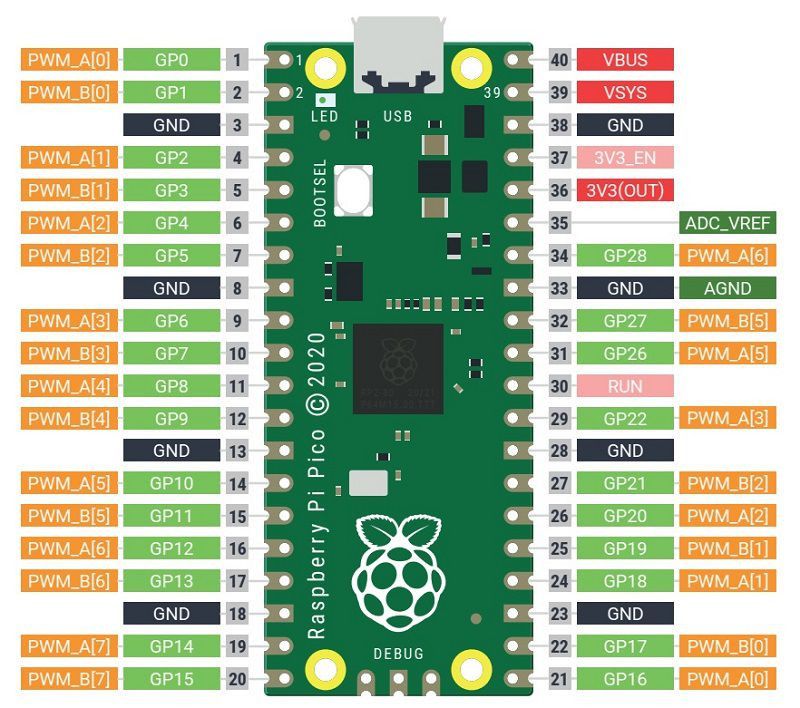

24× PWM channels
4× ADC channels
1× USB 1.1 controller and PHY, host and device support
