As good, but better

Higher core clock speed, double the amount of memory, more powerful ARM cores, optional RISC-V cores, new security features and improved connectivity make the Raspberry Pi Pico 2 a significantly powerful device while remaining compatible with earlier Raspberry Pi Pico series models.
Programmable in C/C++ and Python and supplied with detailed documentation, the Raspberry Pi Pico 2 is an ideal microcontroller board for both hobbyists and professional developers.

Next-generation chip

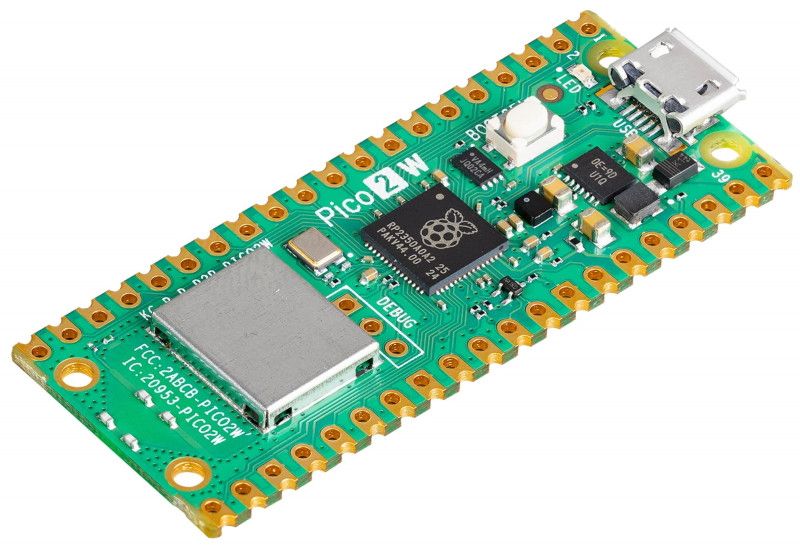

The Raspberry Pi Pico 2 W is powered by the RP2350, a new, powerful and secure microcontroller. Every aspect of the design has been improved, from the processor cores to the unique PIO interface system. Raspberry has implemented a comprehensive security architecture based on ARM TrustZone for Cortex-M. New power-saving features and package options broaden the range of possible applications.

The Raspberry Pi Pico 2 W provides wireless connectivity via 2.4GHz 802.11n Wi‑Fi and Bluetooth 5.2. This enables greater flexibility in IoT and smart-product design, expanding project possibilities.

Technical specifications

• Two Arm Cortex-M33 or two Hazard3 processors @ 150 MHz
• 520 KB on-chip SRAM
• Connectivity 2.4GHz 802.11n wireless LAN and Bluetooth 5.2 (CYW43439)
• Compatible with Raspberry Pi Pico 1 in both software and hardware
• Drag-and-drop programming via mass storage over USB
• Encapsulated module allows direct soldering to carrier boards
• Optional boot signing, checked by the chip’s internal mask ROM, key fingerprint in OTP
• Protection for optional boot encryption key in OTP memory
• Global bus filtering based on Arm or RISC-V security/authorization levels
• Peripherals, GPIOs and DMA channels individually assignable to security domains
• Hardware-based protections against fault injection attacks
• Hardware SHA-256 accelerator
• 2× UART
• 2× SPI controller
• 2× I2C controller
• 24× PWM channels
• 4× ADC channels
• 1× USB 1.1 controller and PHY, host and device support
• 12× PIO state machines
• Open-source C/C++ SDK, MicroPython support
• Operating temperature -20 °C – +85 °C
• Supported input voltage 1.8 ... 5.5 V DC

Links

• Raspberry Pi Pico 2 product brief
• Raspberry Pi Pico 2 MicroPython SDK
• Raspberry Pi Pico 2 C/C++ SDK
