Features

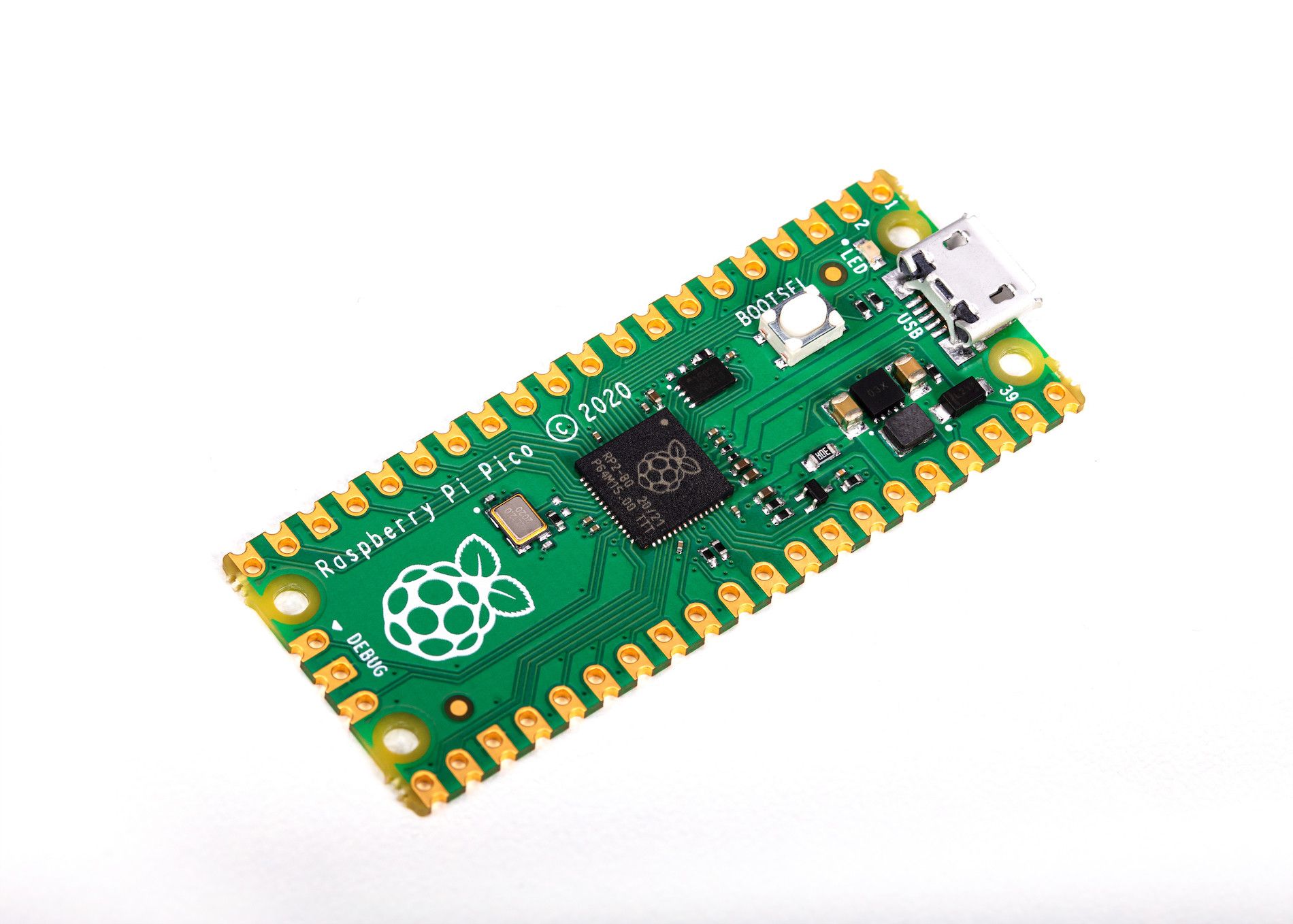

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom.
• Dual-core ARM Cortex M0+ processor, flexible clock up to 133 MHz.
• 264kB SRAM and 2MB on-board Flash memory.
• Encapsulated module allows soldering directly to the carrier board.
• USB 1.1 Host and device support
• Low-power sleep and dormant modes
• Drag & drop programming via USB mass storage

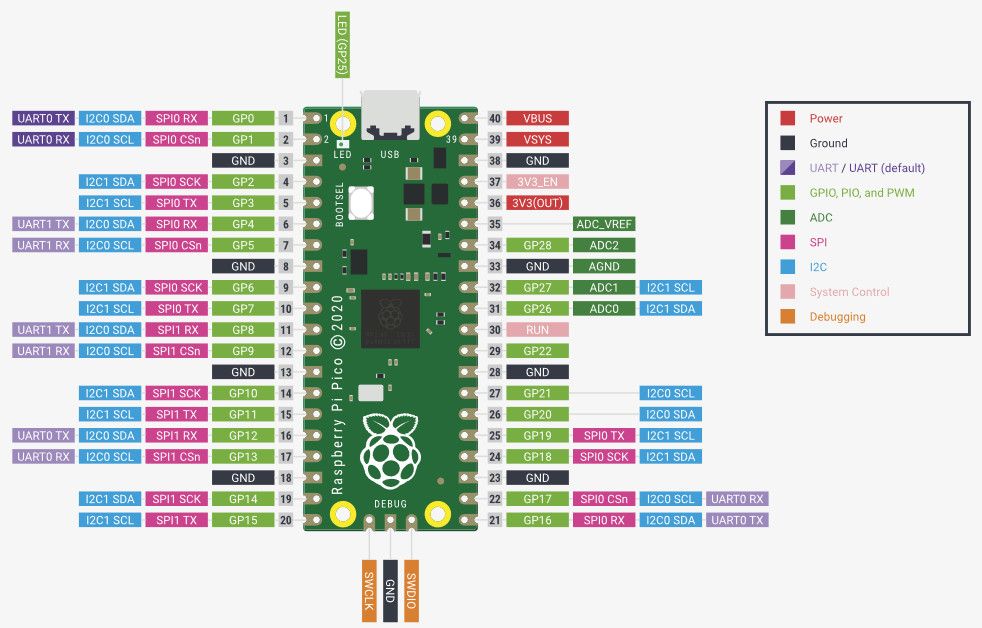

• 26 multifunctional GPIO pins
• 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels.
• Accurate on-chip clock and timer
• Temperature sensor
• Hardware-accelerated floating point libraries on-chip
• 8×Programmable IO (PIO) state machines to support custom peripherals.

Documentation

• Raspberry Pi Pico datasheet

  RP2040-based microcontroller board

• RP2040 Datasheet

  Raspberry Pi's microcontroller

• Hardware design with RP2040

  Using the RP2040 microcontroller to build circuit boards and products
