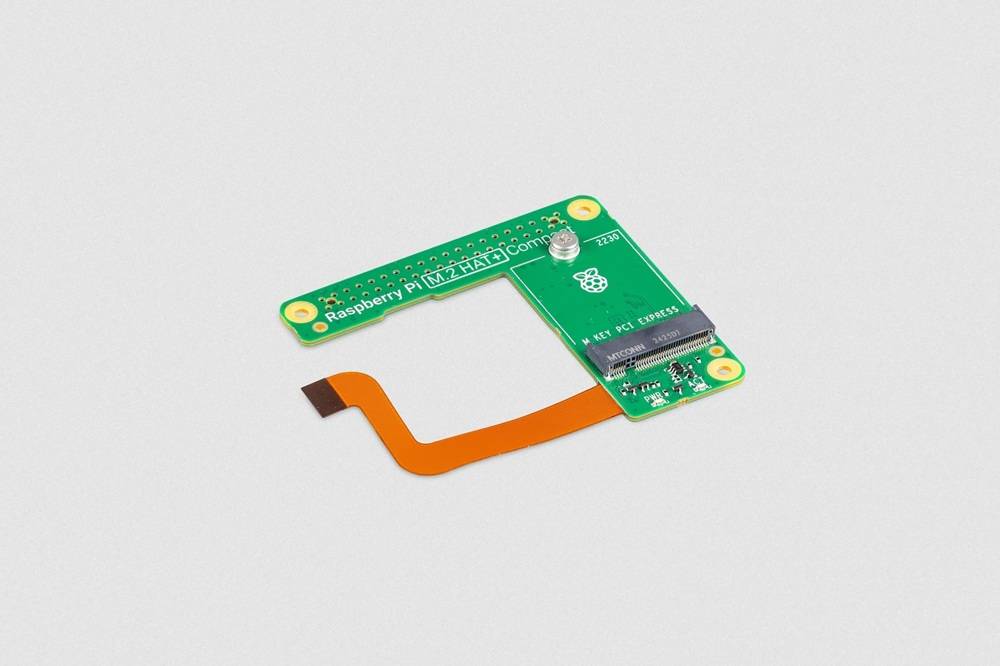

Raspberry Pi M.2 HAT+ Compact expansion card for use with M.2-interface devices with the Raspberry Pi 5 in a compact size. The card is specifically designed to be used with the Raspberry Pi 5 case, and its smaller form leaves room for the case's integrated cooling fan.

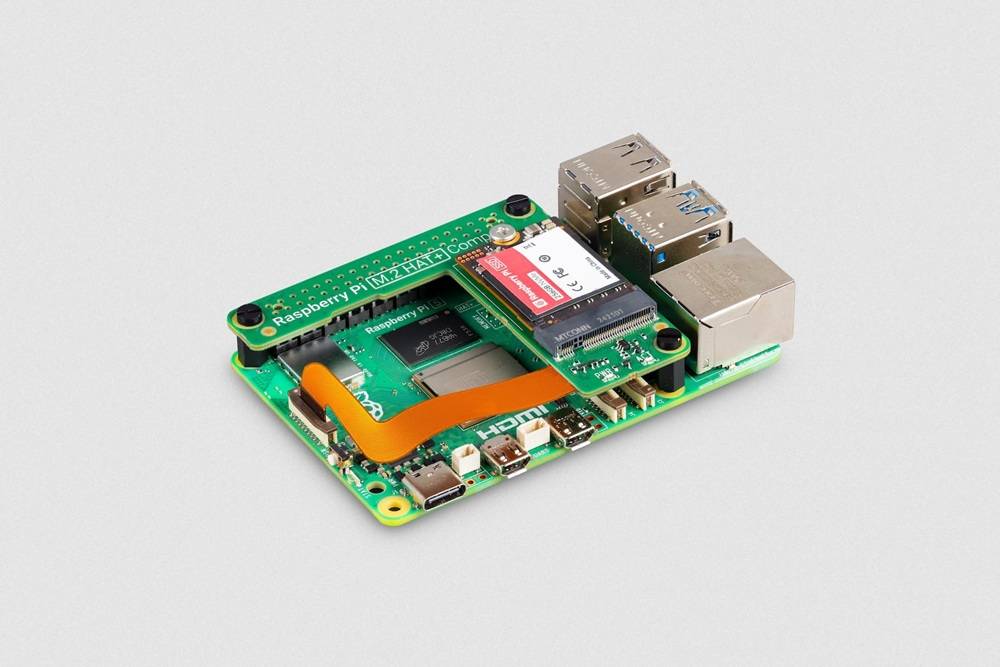

The Compact model supports M.2 M key connector devices in the 2230 size, such as SSDs and other PCIe peripherals. The card uses a single-lane PCIe 2.0 interface with a 500MB/s peak transfer rate.

Features

• Compact M.2 HAT+ expansion card for Raspberry Pi 5
• Designed to be used with the Raspberry Pi 5 case
• Supports devices using an M.2 M key connector
• Compatible with 2230-size M.2 devices
• PCIe 2.0 interface (single-lane)
• Power to M.2 device: 3A
• Power and activity LEDs

Technical specifications

• Interface: PCIe 2.0 (single-lane)
• Supported device sizes: 2230
• Compatibility: Raspberry Pi HAT+ standard
• Operating temperature: 0–50 °C

Package contents

• Ribbon cable
• 16 mm raised GPIO connector (stacking header)
• Mounting standoffs and screws
• Threaded mounting screw for M.2 device
