Note! Compatible with Raspberry Pi 5, but requires the RPI SC1128 adapter cable (see below)

Note! The Raspberry Pi HQ camera requires a lens; see lenses below.

Description

A high-quality camera provides an alternative to the camera module v2 for industrial and consumer applications, including security cameras that require the highest visual fidelity and/or integration with specialised optics. It is compatible with all Raspberry Pi computer models from Raspberry Pi 1 Model B onwards when using the latest software release.

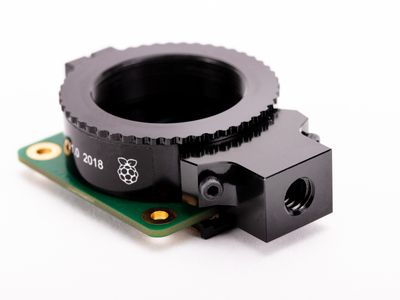

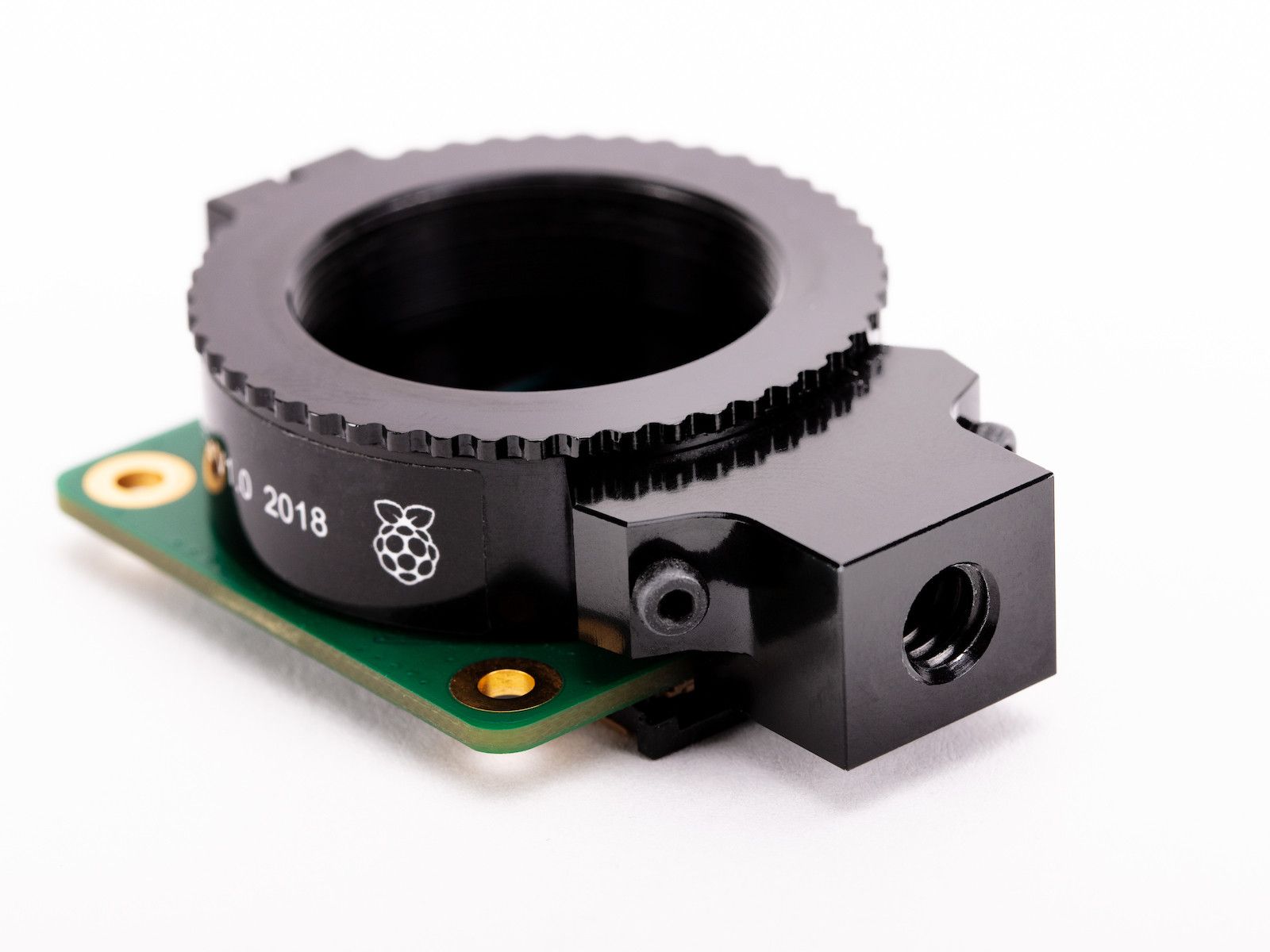

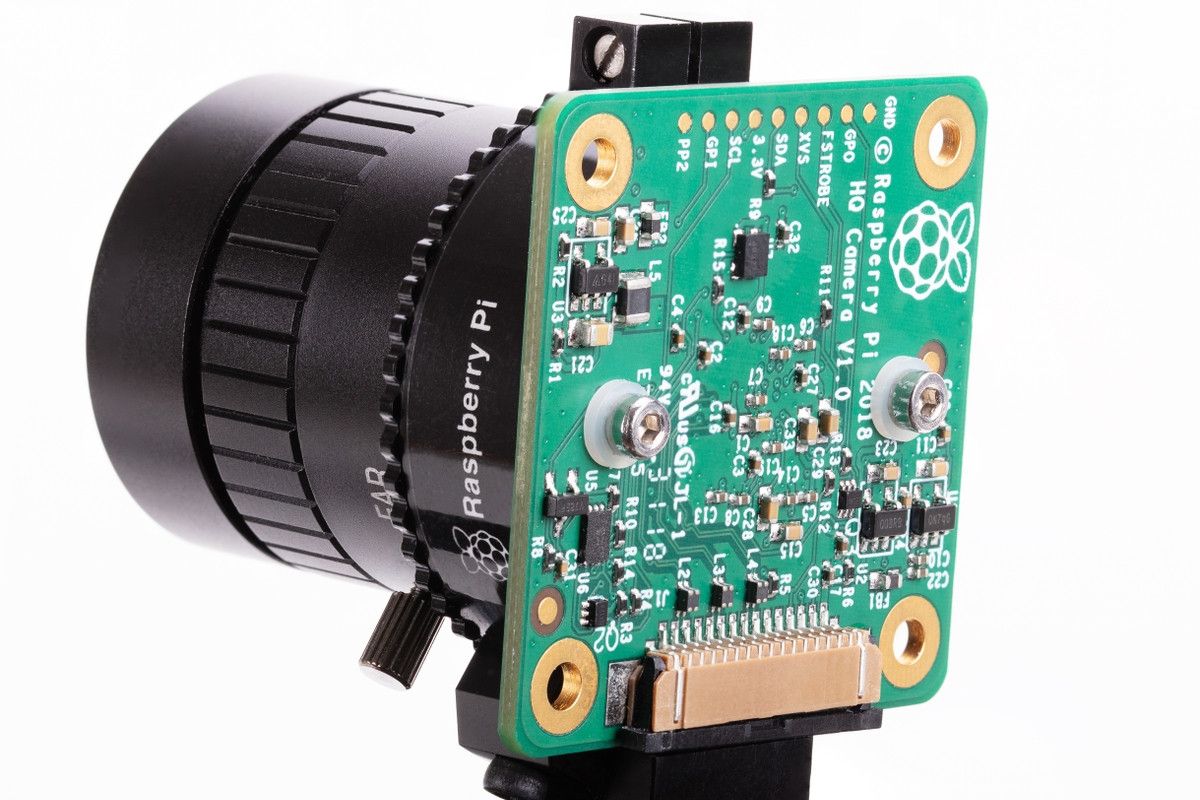

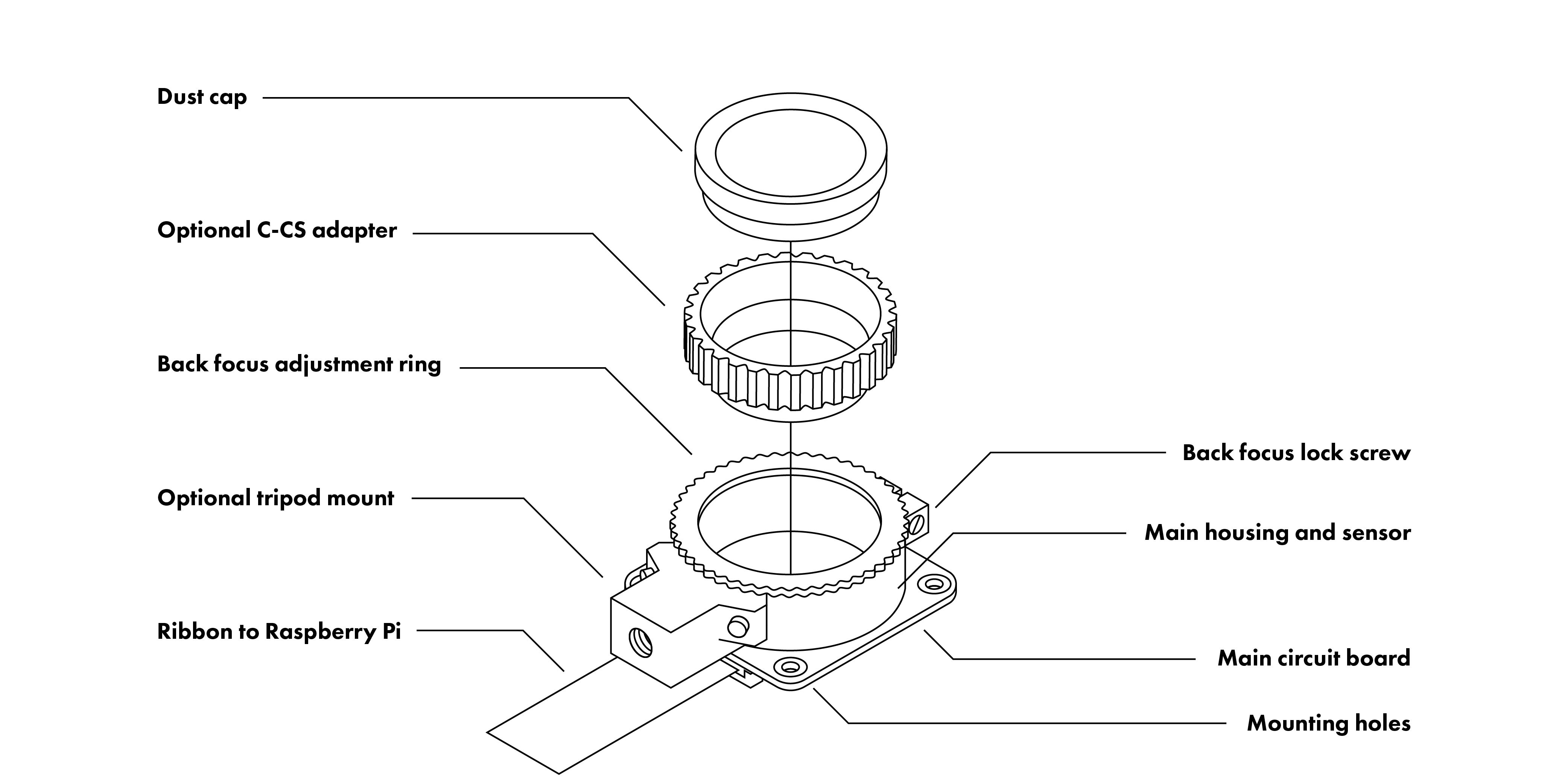

The package includes a circuit board with a Sony IMX477 sensor, an FPC cable for connecting to a Raspberry Pi computer, a machined aluminium lens mount with integrated tripod mount and a focus adjustment ring, and a C- to CS-mount adapter.

Technical specifications

• Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, sensor diameter 7.9 mm, pixel size 1.55 μm × 1.55 μm.
• Formats: RAW12/10/8, COMP8
• Back focus: Adjustable (12.5 mm - 22.4 mm).
• Lens standards: C-mount, CS-mount (C-CS adapter included).
• IR cut filter: Integrated
• Ribbon cable length: 200 mm
• Tripod mount: 1/4"-20

Documents

• Getting started guide
• Raspberry Pi High Quality Camera - product brief
• Raspberry Pi High Quality Camera mechanical drawing
• Example fitting instructions for a typical C-mount lens
• Example fitting instructions for a typical CS-mount lens

Note! Lenses pictured are not included.
