RASPBERRY PI HAT DVB-T RECEIVER

Temporarily out of stock

SKU#: RPI-TV-UHAT

RASPBERRY PI HAT DVB-T RECEIVER

RASPBERRY PI HAT DVB-T RECEIVER

RASPBERRY PI HAT DVB-T RECEIVER

Temporarily out of stock

SKU#: RPI-TV-UHAT

33,40 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Specifications

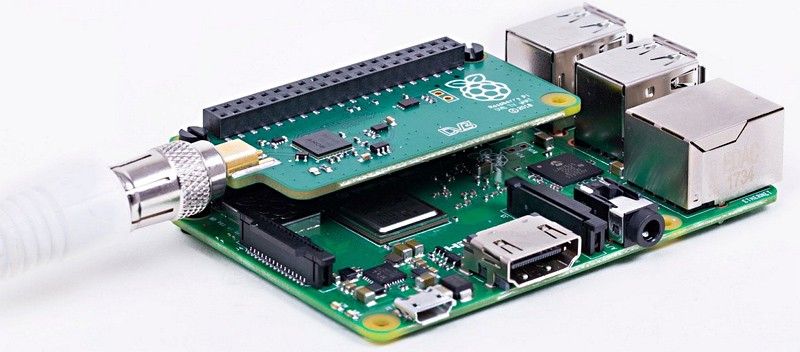

connects to Raspberry Pi 40-pin GPIO header

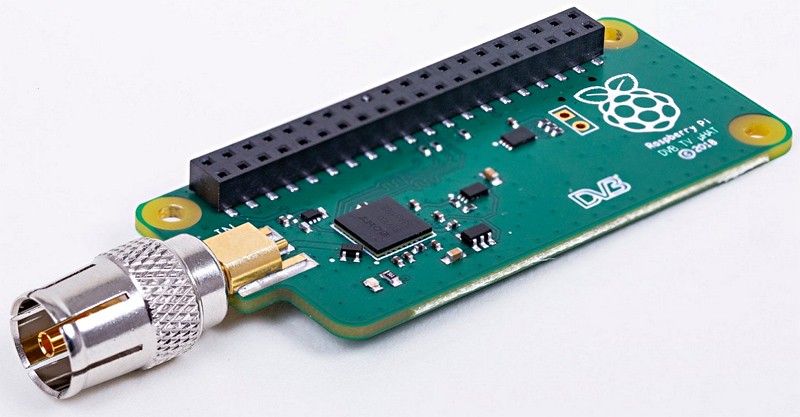

Sony CXD2880 TV tuner (pictured EVV100)
supported TV standards: DVB-T2, DVB-T
receivable bands: VHF III, UHF IV, UHF V
channel bandwidth DVB-T2: 1.7 MHz, 5 MHz, 6 MHz, 7 MHz, 8 MHz
channel bandwidth DVB-T: 5 MHz, 6 MHz, 7 MHz, 8 MHz
operating temperature: 0...50°C
compatible with Raspberry Pi 2, 3B, 3B+, Zero WH
supported operating systems: Kodi, LibreELEC, OMXplayer

Delivery

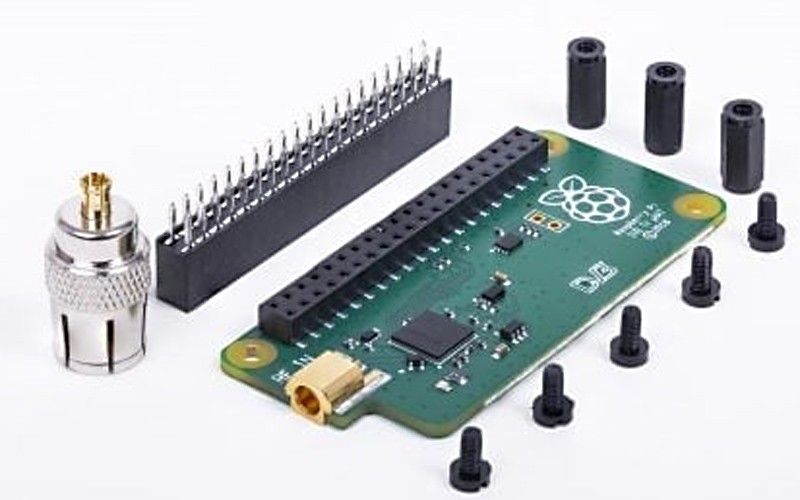

Raspberry Pi TV HAT, support standoffs, 40x GPIO pin header, IEC antenna adapter

Product Information

Availability Made to order, delivery time usually 7-14 days
EAN 707565827195
Product path Home Development Cards Raspberry Pi Raspberry Pi expansion boards (HAT) RASPBERRY PI HAT DVB-T RECEIVER
SKU RPI-TV-UHAT
Attributes
- Compatible Raspberry Pi Zero
- Manufacturer's model RASPBERRY PI TV THREATS (MMP-1365)
- Click for more details https://www.raspberrypi.org/blog/raspberry-pi-tv-hat/
- Dimensions 65 x 30 mm
