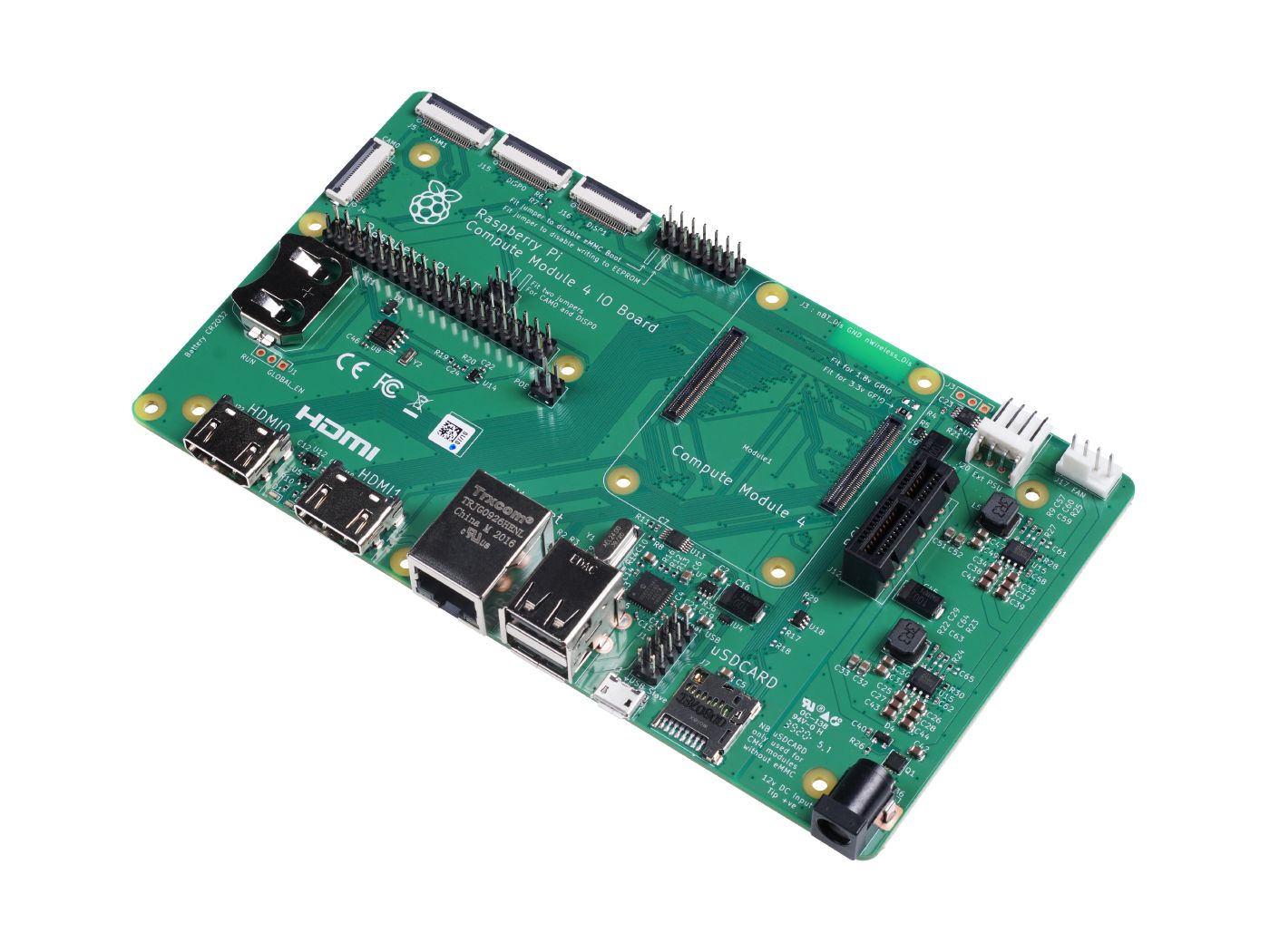

The Compute Module 4 IO Board is an I/O carrier board for the Raspberry Pi Compute Module 4. It is designed to be used both as a development platform for the Compute Module 4 and as an embedded carrier board integrated into finished products. The IO board is designed so you can create systems quickly using off-the-shelf parts such as HAT and PCIe cards, which can include NVMe, SATA, networking or USB cards. The main user connectors are located on one side to simplify enclosures.

PRODUCT INFORMATION

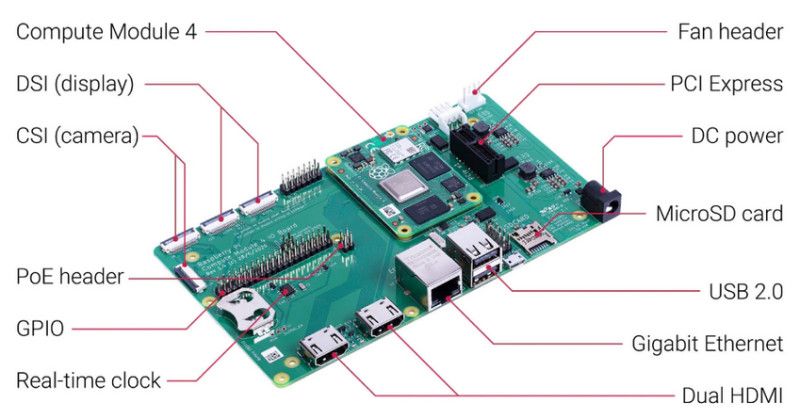

Features

• Carrier board for the Raspberry Pi Compute Module 4
• Dual display support up to 4K resolutions
• Hardware video decoding up to 4Kp60
• Two camera interfaces
• PCIe Gen 2 x1 connector

Description

The Compute Module 4 IO Board is an I/O carrier board for the Raspberry Pi Compute Module 4. It is designed to be used both as a development platform for the Compute Module 4 and as an embedded carrier board integrated into finished products.

The IO board is designed so you can create systems quickly using off-the-shelf parts such as HAT and PCIe cards, which can include NVMe, SATA, networking or USB cards. The main user connectors are located on one side to simplify enclosures.

The Compute Module 4 IO Board also provides an excellent way to prototype systems using the Compute Module 4.

Technical specifications

Parts list

• 1 x Raspberry Pi Compute Module 4 IO board (Raspberry Pi Compute Module 4 IO Board)
