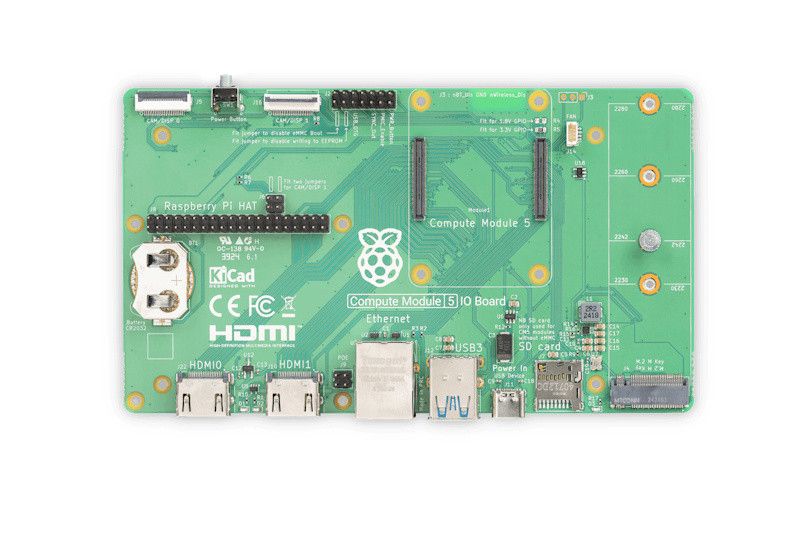

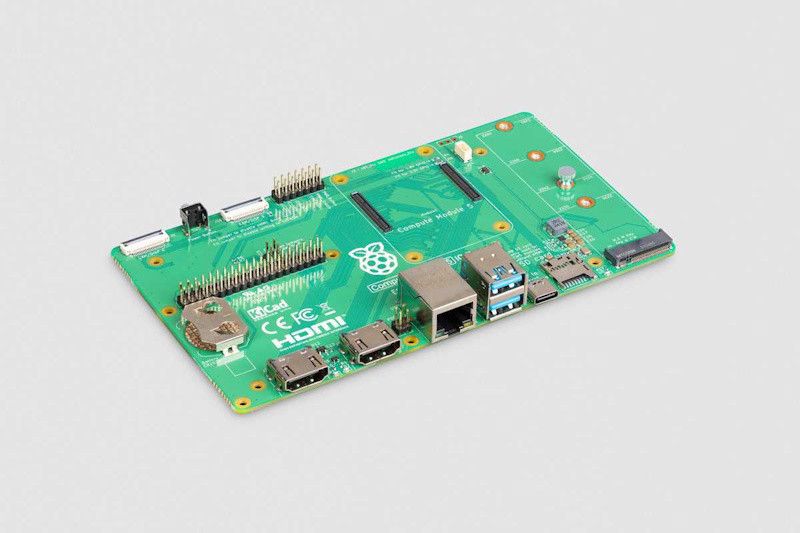

Features

• Power input: External +5V USB-C power supply
• Power button: Wakes and powers off the Compute Module 5
• HDMI: 2 × full-size HDMI 2.0 connectors (supports two 4K30 outputs)
• Ethernet: Gigabit RJ45 with PoE support
• USB: 2 × USB 3.0 ports
• microSD card slot: For CM5Lite models
• PCIe: M.2 M Key PCIe connector
• Fan connector: 4-pin JST-SH PWM fan connector (selectable 5V/12V)
• MIPI: 2 × MIPI DSI/CSI-2 FPC connectors (22-pin, 0.5 mm pitch)
• GPIO: 40-pin colour-coded GPIO header (HAT-compatible)
• PoE header: PoE available/on-off jumper
• RTC: RTC battery holder (wake, shutdown, reboot)
• Jumpers: Disable functions (such as eMMC boot, EEPROM write, power button, USB OTG)

Connecting to Compute Module 5

• Compatible with all CM5 variants
• Direct connection to the Compute Module 5 connector pins

Rich peripheral connectivity

• Includes all main connectors: HDMI, USB, Ethernet, microSD, M.2 SSD, DSI, CSI, RTC, GPIO
• Suitable for development, testing and production

Dimensions

• 160 × 90 mm

Links

• Datasheet (PDF)

Note! Compute Module must be purchased separately!
