Note: This is an alternative antenna kit for the CM4 that has onboard wireless connectivity.

CM4 models with the built-in wireless option have an onboard U.FL connector for an external antenna; this is a compatible antenna kit.

[img-29800-left-desc_default]

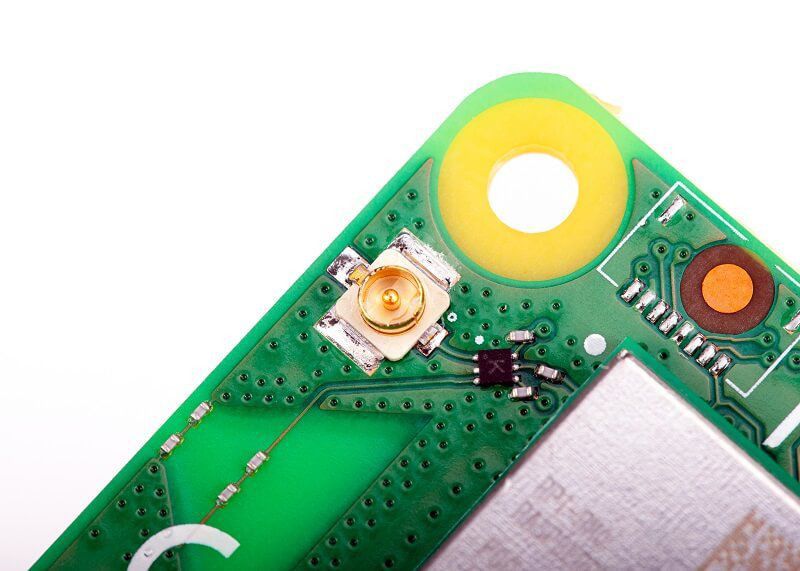

Note: The U.FL connector is fitted only to the Compute Module 4 with the wireless connector; non-wireless variants/models DO NOT have a U.FL connector nor the metal "can" for the wireless module.

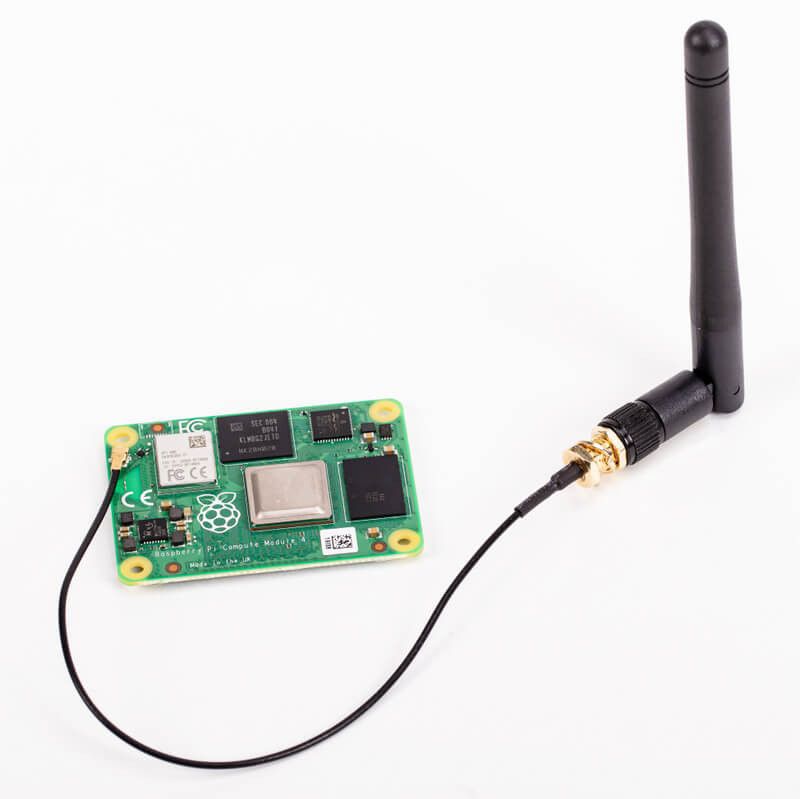

This antenna kit includes an SMA (female) right-angle (0º–90º) antenna and an RF cable with RP-SMA (male) to MHF1/U.FL connector, with a length of 205 mm. You can attach the SMA antenna to an external enclosure/case to extend the wireless signal.

[img-29801-left-desc_default]

Note: The CM4 (wireless) can switch between the onboard PCB antenna and an external antenna via software/IO.

Note: The Raspberry board shown in the picture is NOT included.

Features

Package list
