Note! Suitable for use with Raspberry Pi 5, but requires the RPI SC1128 adapter cable (see below)

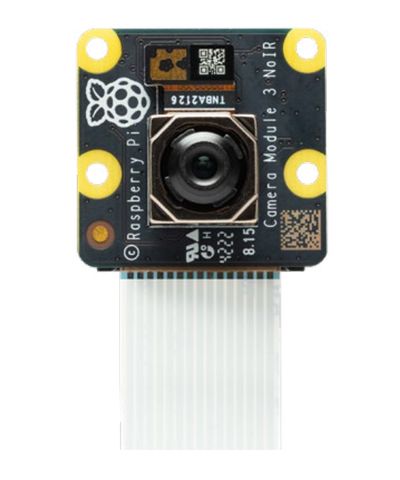

Raspberry Pi Camera Module 3 is a compact camera for the Raspberry Pi. It features a 12-megapixel IMX708 sensor with HDR and autofocus. The Camera Module 3 is available in standard and wide-angle versions, with or without an infrared filter.

NOTE! This model does not include an infrared filter.

Features

• Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
• High signal-to-noise ratio (SNR)
• Built-in 2D Dynamic Defect Pixel Correction (DPC)
• Phase Detection Autofocus (PDAF) for rapid autofocus
• QBC Re-mosaic function
• HDR mode (up to 3 megapixel output)
• CSI-2 serial data output
• 2-wire serial communication (supports I2C fast mode and fast-mode plus)
• 2-wire serial control of focus mechanism

Specifications

• Sensor: Sony IMX708
• Resolution: 11.9 megapixels
• Sensor size: 7.4mm sensor diagonal
• Pixel size: 1.4μm × 1.4μm
• Horizontal/vertical: 4608 × 2592 pixels
• Common video modes: 1080p50, 720p100, 480p120
• Output: RAW10
• IR cut filter: Integrated in standard variants; not present in NoIR variants
• Autofocus system: Phase Detection Autofocus
• Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants)
• Ribbon cable length: 200mm
• Cable connector: 15 × 1mm
• FPC Operating temperature: 0°C to 50°C
