• display resolution: 800x480
• display area size: 86 x 155 mm
• capacitive touch surface, 10-point detection
• connector: DSI flat cable
• requires its own 5VDC 500mA power supply
  • use the black and red jumper wire GPIO->display board
  • or connect a power supply to the display board whose PWR OUT connector feeds power to Raspille
• mounting point on the back plate compatible with PI2 B/A and PI1 B+/A+

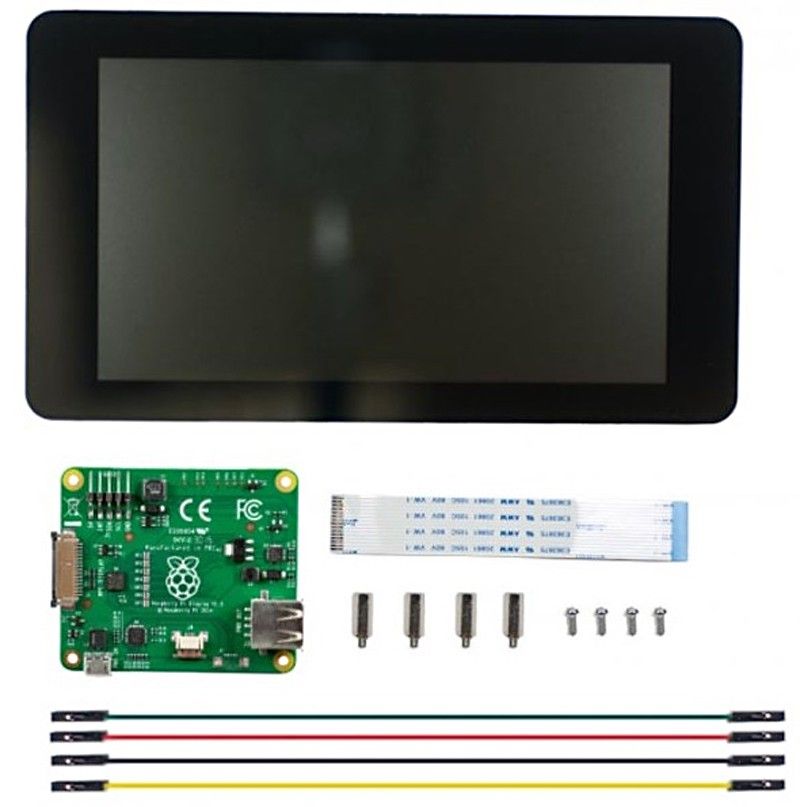

• includes an additional board that handles power supply, display adaptation and touch screen I2C signaling
• by default the main display switches to this instead of the HDMI output

Note! The touch screen does not need separate jumper wiring when using Raspberry Pi 2 Model B because the control is carried to Raspille within the DSI traffic. Older Raspit require GPIO-I2C wiring for the touch screen.
